Milling machine CORREA CF40/50
SOLD
View all technical features
Type of milling machine
- Type: Bed type
- Brand: Correa
- Model: CF40/50
- Year of manufacture: 1991
- Retrofitted: 2014 - 2015
- Numerical control: HEIDENHAIN TNC-530
Technical features
Dimensions
- Table dimensions: 5000 x 1100 mm
- Number of T slots: 8
- T slots dimensions: 22 mm
Traverses of axis
- X axis traverse: 5000 mm
- Y axis traverse: 1200 mm
- Z axis traverse: 1500 mm
Milling head
- Head type: Automatic UG 3º Horizontal/Vertical
- Tool clamping system: Hydraulic
- Taper nose: ISO 50 DIN 69871
- Speed range: 20 - 2500 r.p.m.
- Spindle power: 30 kW
Feedrates
- Feedrate: 2 - 5000 mm/min
- Rapid feedrate: 15000 mm/min
Weight and dimensions
- Maximum weight on table: 12000 Kg
- Machine weight: 45000 Kg
- Machine dimensions: 11700 x 5000 x 3320 mm
Accesories
- Guarding
Sales conditions
- Warranty: 6 months mechanical parts
- Sale price (Ex Work): On request

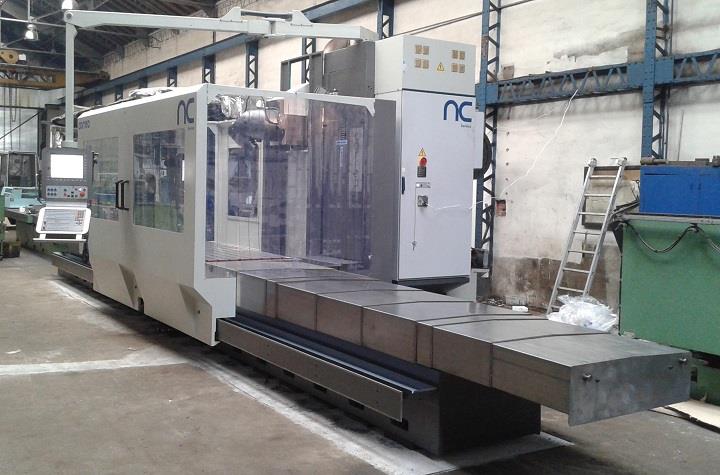

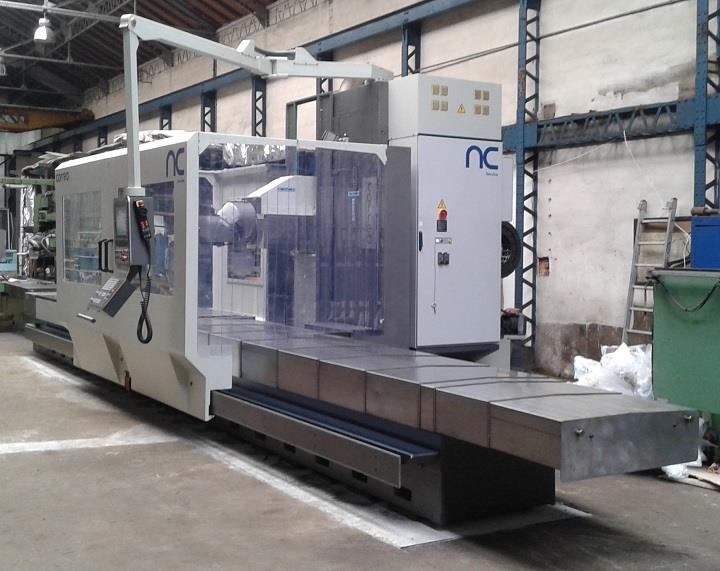

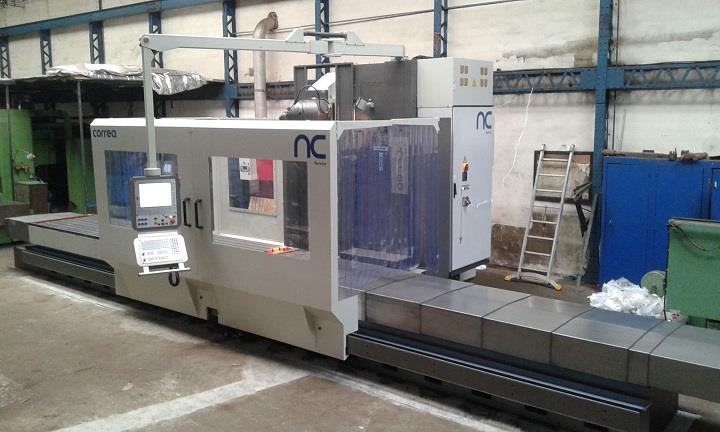

Bed type milling machine CORREA CF40/50
