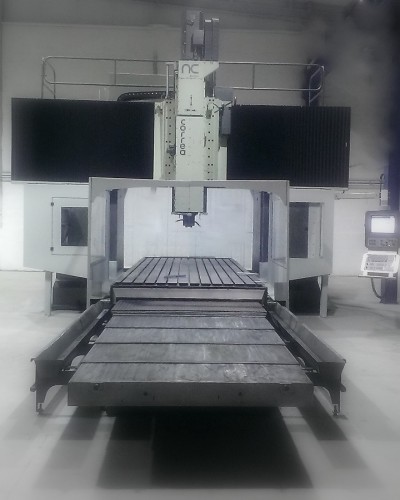

CORREA Milling Machine FP60

SOLD

Type of milling machine

  • Type: Bridge type
  • Brand: Correa
  • Model: FP 60
  • Year of manufacture: 1990
  • Retrofitted: 2014
  • Numerical control: HEIDENHAIN TNC-530
Download technical data sheet

Technical features

Dimensions

  • Table dimensions: 5000 x 2000 mm
  • Number of T slots: 9
  • T slots dimensions: 22 mm

Traverses of axis

  • X Axis traverse: 5000 mm
  • Y Axis traverse: 3300 mm
  • Distance between columns: 2700 mm
  • Z Axis traverse: 1000 mm (500/1500)

Milling head

  • Head type: Universal manual
  • Tool clamping system: Hydraulic
  • Taper nose: ISO 50 DIN 69871
  • Speed range: 20 - 4000 rpm
  • Spindle power: 42 kW

Feedrates

  • Feedrate: 5000 mm/min
  • Rapid feedrate (X / Y,Z): 7200 / 5000 mm/min

Weight and dimensions

  • Maximum weight on table: 25000 Kg
  • Machine weight: 60000 Kg
  • Machine dimensions: 12700 x 5420 x 6033 mm

Accesories

  • Guarding
  • Electronic handwheel: HR-410

Sales conditions

  • Sale price (Ex Work): On request
View all technical features
