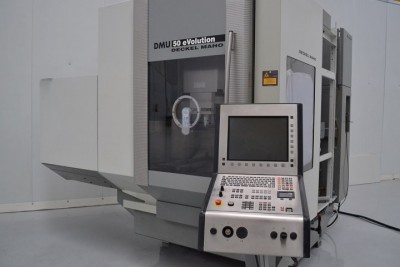

Machining Center DECKEL MAHO - DMU 50 eVolution - 11045530524

Technical features

Other technical features

Traverse of axes:

• X axis traverse: 500 mm
• Y axis traverse: 420 mm
• Z axis traverse: 380 mm

Main drive:

• Speed range: 20 – 18000 r.p.m.
• Spindle power (40/100 % ED): 35/25 kW
• Spindle torque (40/100 % ED): 130/87 Nm

Feedrates:

• Feedrate (X/Y/Z): 20-20000 mm/min
• Rapid feedrate (X/Y/Z): 50 m/min

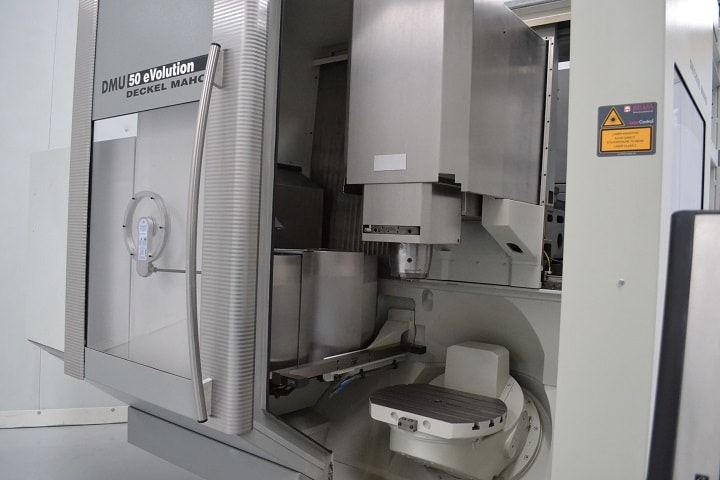

Working table (B+C axes):

• Table dimensions: Ø 500 x 380 mm
• Maximum weight on table: 200 Kg
• T slots (Number / Size / Tolerance): 7 / 14 mm / H7
• C axis traverse: 360º (resol. 0.001º)
• B axis traverse: 180º (resol. 0.001º)

Machine:

• Machine dimensions (LxWxH): 2683 x 5353 x 2470 mm
• Machine weight: 5020 Kg

Cone:

• Taper nose: SK 40 (DIN 69871 A)

Power supply:

• Phases | Frequency | Voltage | Power:  3N | PE~50-60Hz | 400/230V | 40kW

Accessories:

• Cooling through spindle system

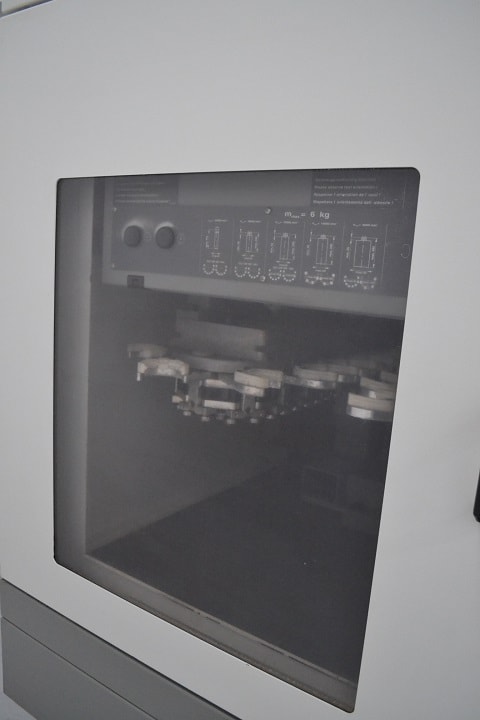

• Automatic tool changer: ATC-60

       -          Tool max. weight / Tool max. diameter: 6 Kg / 200 mm

• Chip conveyor
• Electronic handwheel: HR-410
• High capacity cooling system: Interlit SUK-200-900
• Equipped with Renishaw probe interface (probe not included)
