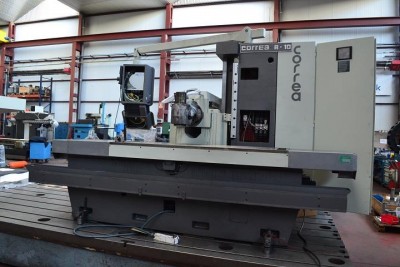

Milling machine CORREA A10 - 9560412

SOLD

Type of milling machine

  • Type: Bed type
  • Brand: Correa
  • Model: A10
  • Year of manufacture: 1987
  • Retrofitted: 2023

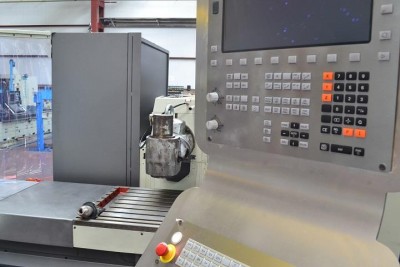

  • Numerical control: HEIDENHAIN TNC-320 (¡NUEVO! / NEW!)
Download technical data sheet View video

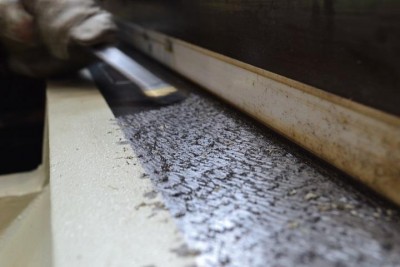

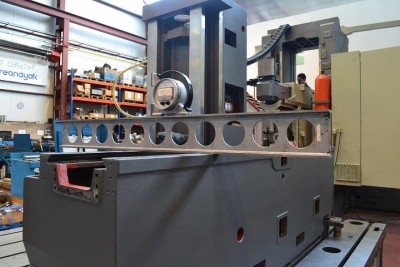

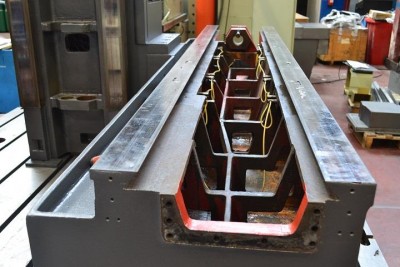

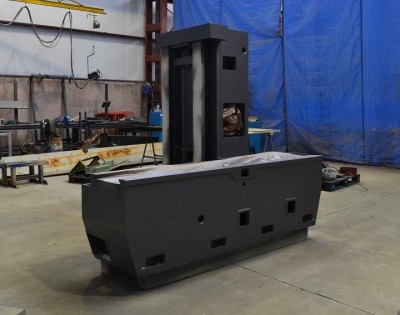

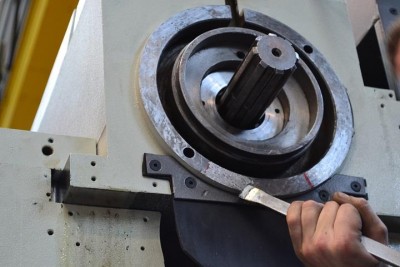

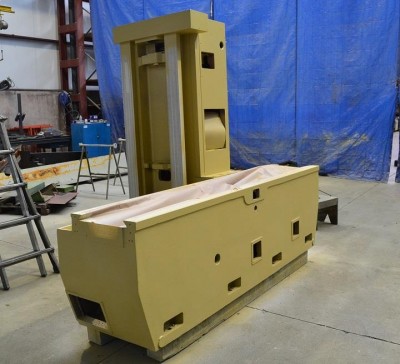

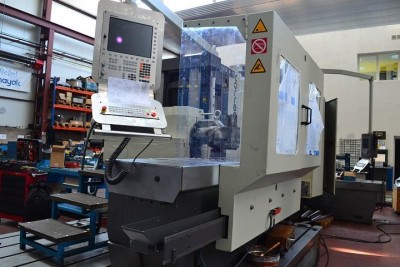

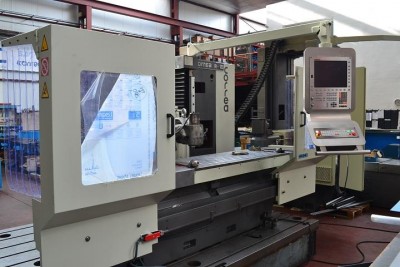

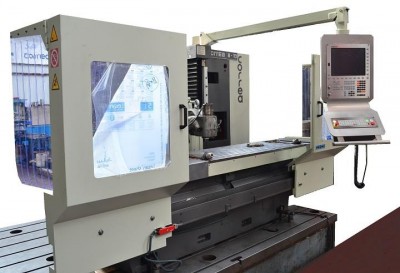

CORREA A10 milling machine with fixed bed and mobile table, with installation of new HEIDENHAIN numerical control unit and full mechanical retrofitting. Ideal for small workshops that require a precise second hand milling machine to process small parts.

Full retrofitted milling machine for sale and with guarantees.

Technical features

Dimensions

  • Table dimensions: 1700 x 630 mm
  • Number of T slots: 6
  • T slots dimensions: 18 mm

Traverses of axis

  • X axis traverse: 1300 mm
  • Y axis traverse: 630 mm
  • Z axis traverse: 630 mm

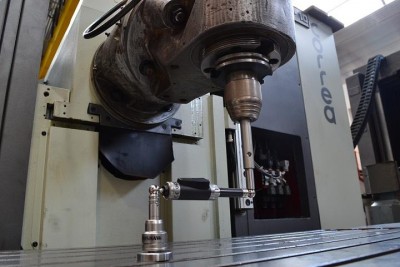

Milling head

  • Head type: Universal Manual / DM16
  • Tool clamping system: Hydraulic
  • Taper nose: ISO 50
  • Speed range: 80 - 2500 rpm
  • Spindle power: 16 kW

Feedrates

  • Feedrate: 5 - 5000 mm/min
  • Rapid feedrate: 8000 mm/min

Weight and dimensions

  • Maximum weight on table: 3000 Kg
  • Machine weight: 9000 Kg
  • Machine dimensions: 4080 x 2629 x 2177 mm

Accesories

  • New guarding
  • New electronic handwheel: HR-510

Sales conditions

  • Warranty: 6 months mechanical parts
  • Sale price (Ex Work): On request
View all technical features
