The best second hand Milling Machines with performance of a new one.
Use our filters and select the best brands: Correa or Anayak.
Also select your business sector and contact us by our web form which you could find at the bottom of this page if you still cannot find the Milling Machine searched.
CORREA AXIA 100 - 785056
- REFURBISHMENT ONGOING
Retrofitting CORREA AXIA milling machine
Control unit SIEMENS 840D
Travels (X/Y/Z): 10000 / 1500 / 2500 mm.
Auto-indexing milling head UAD (every 0,1º).
Two DEMMELER DRLTS1800 rotary tables, with hydrostatic rotation. Dimensions: 2.400 x 1.800 mm and load capacity of 40 Tn.
Automatic 80 tool changer with electric motors.
Front longitudinal chip conveyor and transversal one.
Electronic handwheel 6FX2007-1AE14 Siemens.
External coolant and high-pressure coolant through spindle.
Pendular guarding system with automatic front door and perimetral wire-mesh fence.
Rise/fall adjustable operator’s cabinet.
CORREA FP40/40 - 895234
- REFURBISHMENT ONGOING
CORREA bridge milling machine fully retrofitted with new HEIDENHAIN TNC-i640
New control unit HEIDENHAIN TNC-i640.
Travels (X/Y/Z): 4000 / 3000 / 1000 mm.
Distance between columns: 2500 mm.
Vertical capacity (VC): 240 / 1240 mm.
Universal Auto-indexing differential head (UAD) with 6000 rpm.
Automatic 60 tool changer (sale option with no ATC).
Transversal chip conveyor.
Electronic handwheel HR-420.
External coolant and high pressure through spindle coolant.
Guarding with 2 sliding doors and new perimetral wire-mesh fence.
Retrofitting of CORREA milling machines with excellent machining and accuracy
Find out more details about this second hand bridge milling machine!
CORREA PRISMA 20 - 967519
- IN STOCK
Retrofitting CORREA PRISMA milling machine by CORREA Service
Control unit HEIDENHAIN TNC-i530.
Travels (X/Y/Z): 2000 / 1000 / 1000 mm.
Manual milling head (U22) with 3000 rpm.
New tool clamping pedal.
New electronic handwheel HR-510.
External coolant.
Guarding with 2 sliding doors and new perimetral wire-mesh fence.
Find out more details about this second hand milling machine!
CORREA FP40/60 - 8950202
- REFURBISHMENT ONGOING
CNC CORREA FP40/60 bridge milling machine fully refurbished
New control unit HEIDENHAIN TNC-320.
Travels (X/Y/Z): 6000 / 3800 / 1000 mm.
Vertical capacity (VC): 500 / 1500 mm.
Distance between columns: 3100 mm.
Universal head (UM40 – Body B: manual / Body C: 3º auto-indexing) and direct spindle. with 3000 rpm.
2 longitudinal pallets chip conveyors.
New electronic handwheel HR-510.
External coolant. Internal high pressure through spindle coolant only in direct exit head.
Guarding with 2 sliding doors and a new perimetral wire-mesh safety fence.
Retrofitting of milling machines with excellent machining and accuracy
Find out more details about this second hand bridge milling machine!
CORREA FP40/50
- REFURBISHMENT ONGOING
Second hand CORREA bridge type milling machine
Control Unit: SIEMENS 840D
Travels (X/Y/Z): 5000 / 3250 / 1000 mm
Distance between columns: 2500 mm
C5E-2 axis continuous milling head
Automatic tool changer of 60 tools (ATC60)
NEW! Electronic handwheel
Guarding

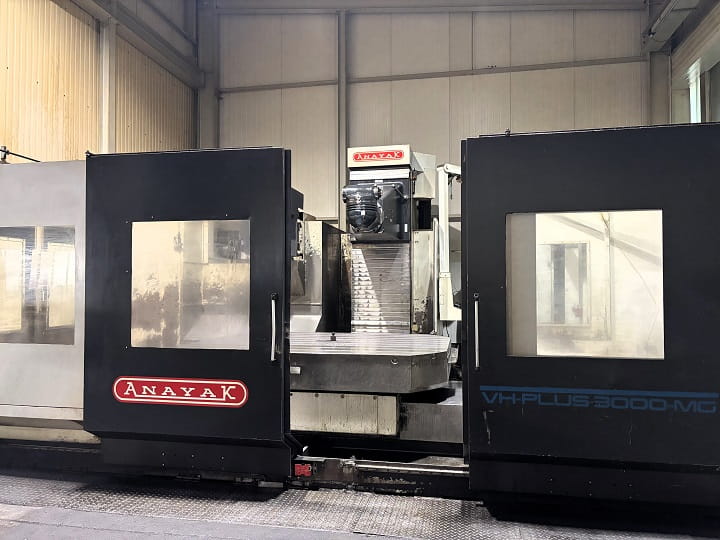

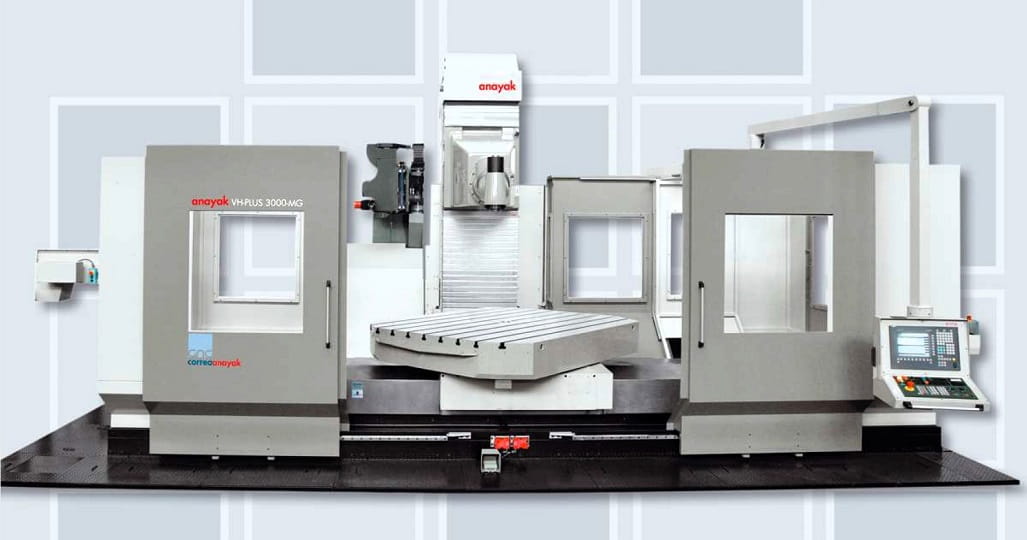

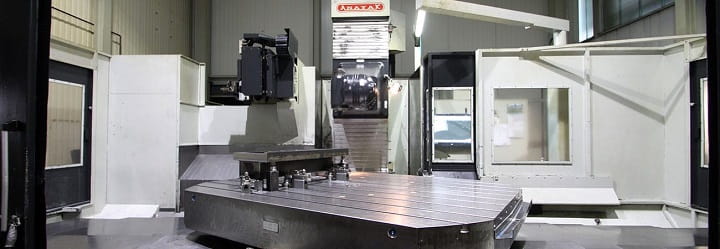

CORREANAYAK VH-PLUS 3000 N-MG - M-20050211
- REFURBISHMENT ONGOING

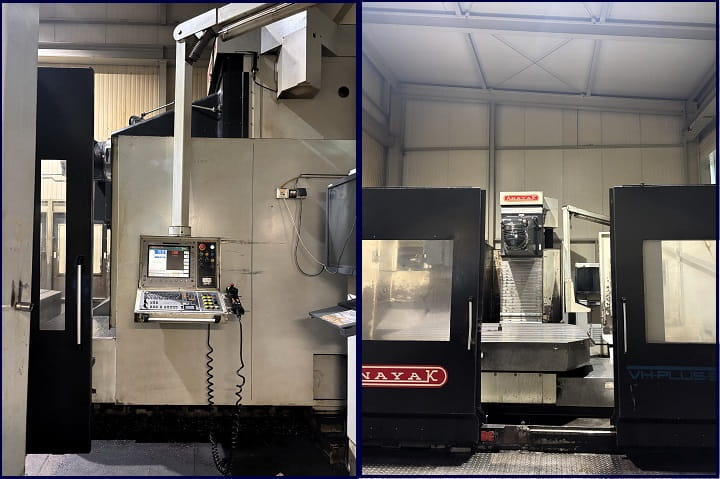

ANAYAK VH-Plus 3000 N-MG milling machine - Retrofitting by CORREA Service
Control unit HEIDENHAIN TNC-530.
Travels (X/Y/Z): 3000 / 1500 / 1300 mm.
Auto-indexing Orthogonal head 90º, with B&C bodies rotation every 1º.

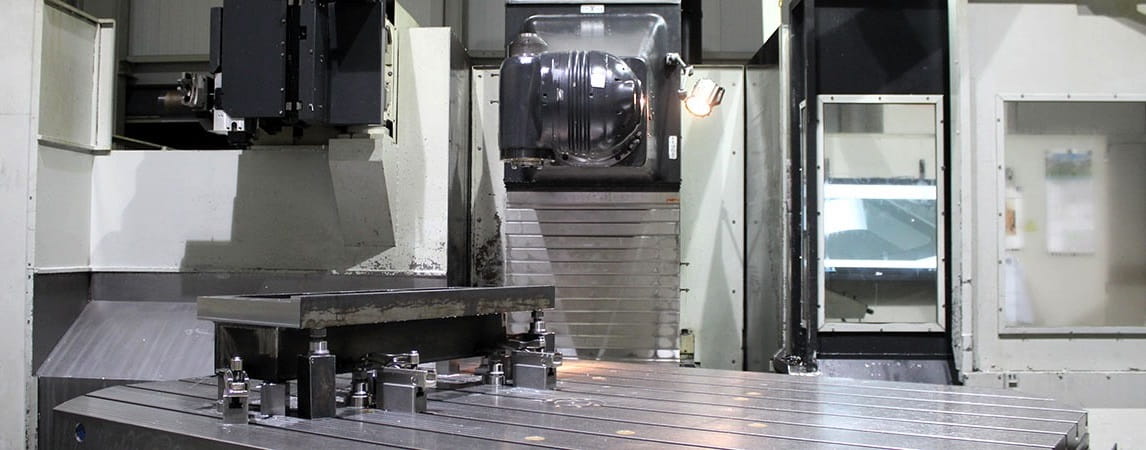

With integrated rototranslating table with a high rotating torque.

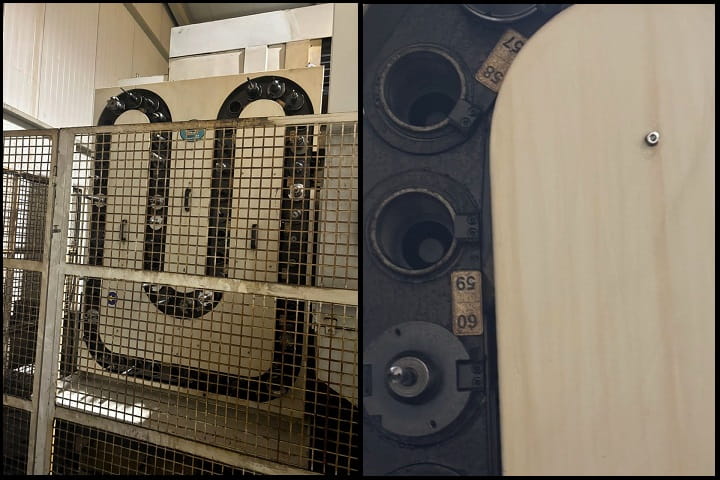

Automatic 60-tool changer.

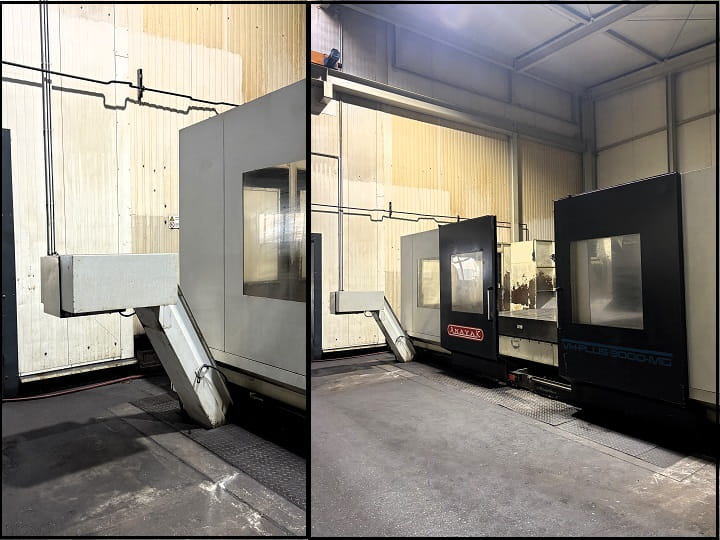

1 longitudinal rear chip conveyor.
Electronic handwheel HR-410.
External and high pressure through spindle coolant, with paper strip filter.
Peripheral guarding without roof.
Retrofitting of milling machines with excellent machining and accuracy
CORREA FPM50/200 - 880133
- REFURBISHMENT ONGOING
Gantry CORREA FPM50/200 milling machine refurbished by CORREA Service
Control unit HEIDENHAIN TNC-530.
Travels (X/Y/Z): 20000 / 3800 / 1250 mm.
Vertical capacity: 100 / 1350 mm.
Distance between column: 3200 mm.
Auto-indexing B&C universal UAD milling head with 6000 rpm, turning every 0,1º.
Automatic 120 tool changer.
2 longitudinal hinge type chip conveyor.
2 switched control panels on each side of the table.
External coolant and internal high pressure coolant through spindle.
Electronic handwheel HR-510.
Guarding with door with platform access and new perimetral wire-mesh fence.

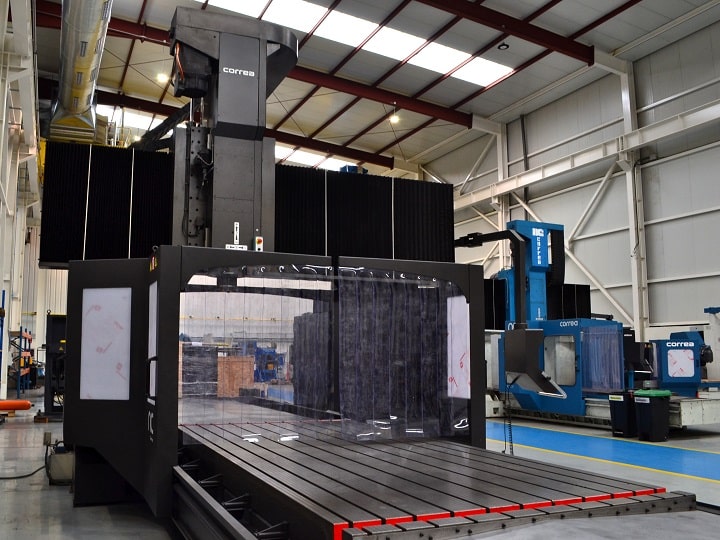

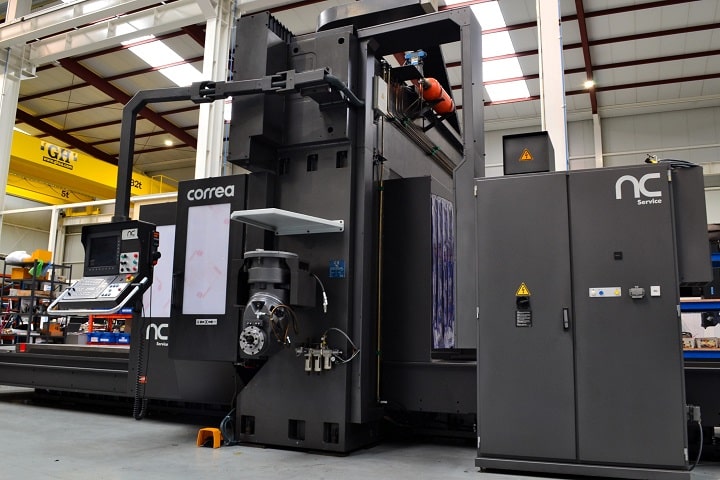

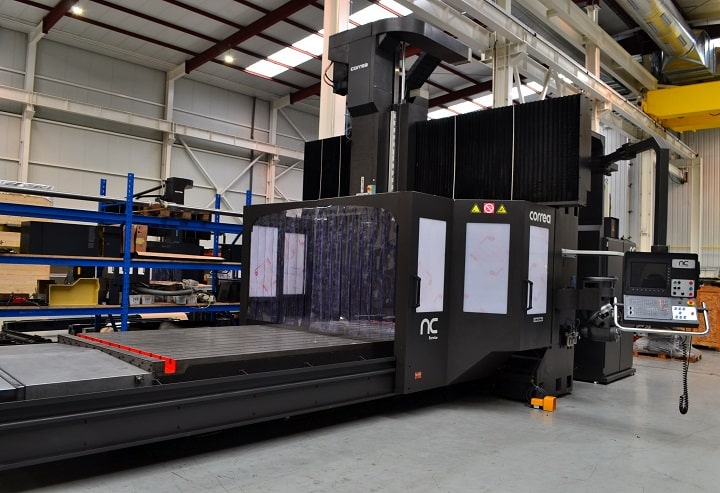

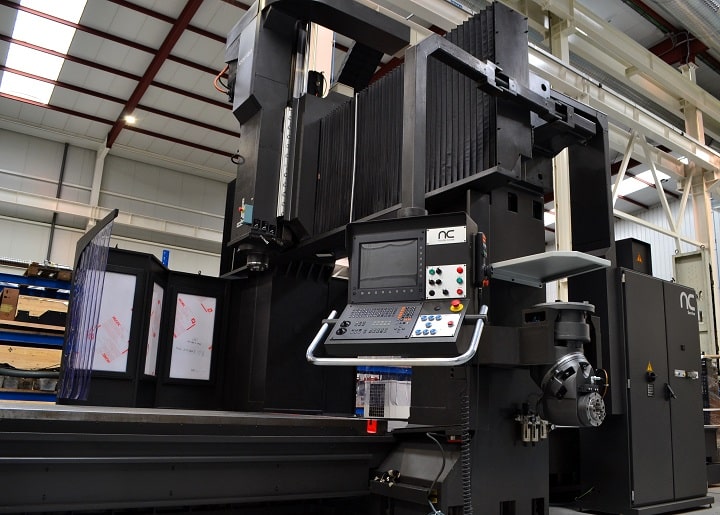

CORREA FP40/40 - 895199
- IN STOCK
Second hand CNC CORREA bridge milling machine fully refurbished.
Control unit HEIDENHAIN TNC-530.
Travels (X/Y/Z): 4000 / 3000 / 1000 mm.
Distance between columns: 2500 mm.
Universal manual milling head (UM40) with 5.000 rpm in direct spindle.
New electronic handwheel HR-510.
External coolant.
Guarding with 2 sliding doors and new perimetral wire-mesh fence.
Retrofitting of milling machine with excellent machining and accuracy.
Find out more details about this second hand bridge milling machine!
CORREA A30/40 - 6300708
- REFURBISHMENT ONGOING
Retrofitting of CORREA A30/40 milling machine with new HEIDENHAIN
New control unit HEIDENHAIN TNC-320.
Travels (X/Y/Z): 4000 / 1200 / 1000 mm.
New universal auto-indexing UDG milling head with 3000 rpm, turning every 2.5º.
New electronic handwheel HR-510.
External coolant.
Guarding with 2 front doors and a new perimetral wire-mesh fence.
Retrofitting of milling machines with excellent machining and accuracy
CORREA CF17D - 968665
- IN STOCK
Used CORREA CF17D milling machine, completely retrofitted and with guarantees
Control unit HEIDENHAIN TNC-410M.
Travels (X/Y/Z): 2000 / 800 / 800 mm.
Manual milling head (U22) with 3000 rpm.
new tool clamping pedal.
Electronic handwheel HR-130.
External coolant.
Guarding with 2 sliding doors and new perimetral wire-mesh fence.
Find out more details about this second hand milling machine!
