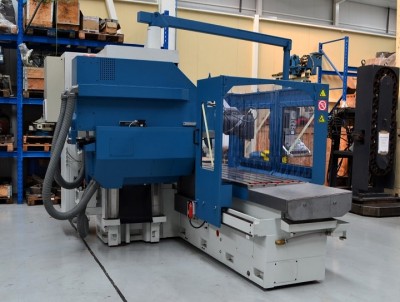

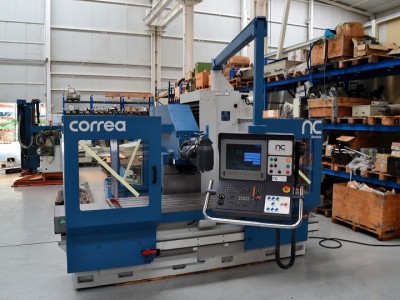

Milling machine CORREA CF17D - 968655

REFURBISHMENT ONGOING

Type of milling machine

  • Type: Bed type
  • Brand: Correa
  • Model: CF17D
  • Year of manufacture: 2000
  • Retrofitted: 2024
  • Numerical control: HEIDENHAIN TNC-426
Download technical data sheet

Full retrofitting of CNC bed type CORREA CF17D milling machine, including a full inspection of electronic and control unit.

Excellent machining conditions, as it is submitted to geometry and accuracy protocols established by the manufacturer NICOLAS CORREA.

CORREA milling machines are a guarantee for your machining! And so it is the CORREA milling machines’ refurbishment by NC Service.

Technical features

Dimensions

  • Table dimensions: 2000 x 700 mm
  • Number of T slots: 5
  • T slots dimensions: 22 mm

Traverses of axis

  • X axis traverse: 2000 mm
  • Y axis traverse: 800 mm
  • Z axis traverse: 800 mm

Milling head

  • Head type: Universal manual (U22)
  • Tool clamping system: Hydraulic
  • Taper nose: ISO 50 (DIN69871) / Pull stud: DIN 69872
  • Speed range: 20 - 3000 rpm
  • Spindle power: 17 kW

Feedrates

  • Feedrate: 5 - 5000 mm/min
  • Rapid feedrate: 12000 mm/min

Weight and dimensions

  • Maximum weight on table: 4000 kg
  • Machine weight approx.: 9500 kg
  • Machine dimensions approx.: 5265 x 3250 x 2760 mm

Accesories

  • External coolant
  • Electronic handwheel: HR-410
  • Guarding

Sales conditions

  • Warranty: 6 months mechanical parts
  • Sale price (Ex Work): On request
View all technical features
