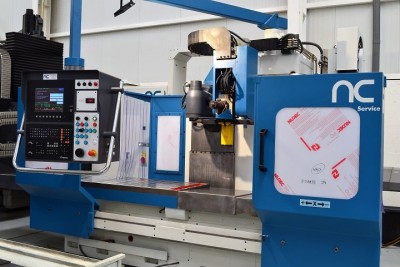

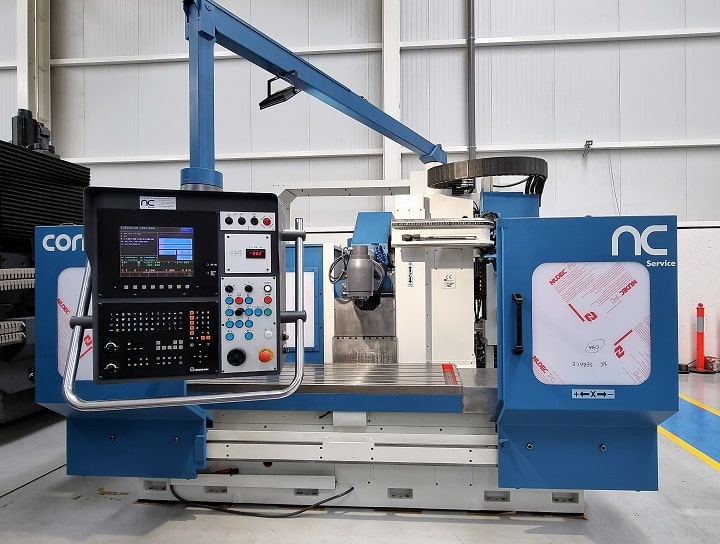

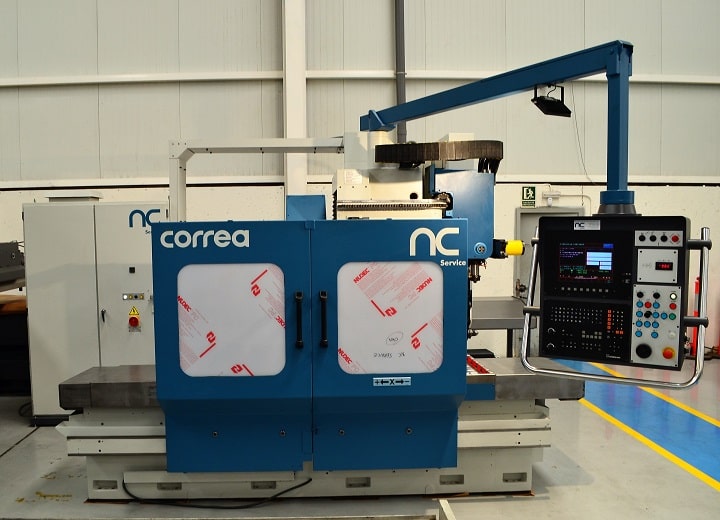

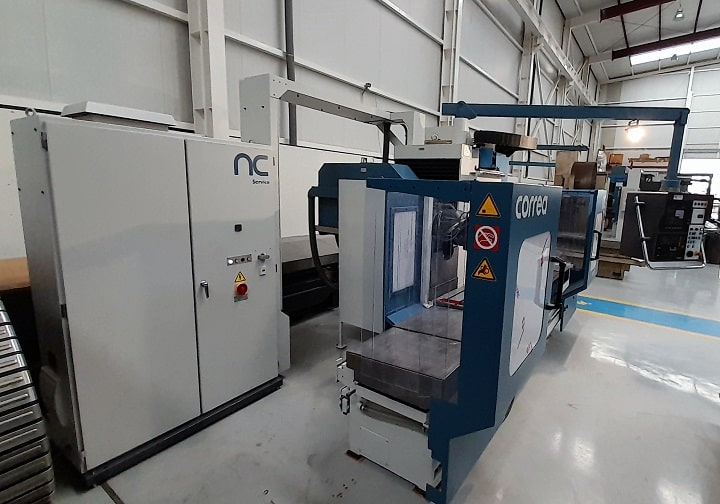

Milling machine CORREA CF22/20 - 9670411

SOLD

Type of milling machine

  • Type: Bed type
  • Brand: Correa
  • Model: CF22/20
  • Year of manufacture: 1997
  • Retrofitted: 2022

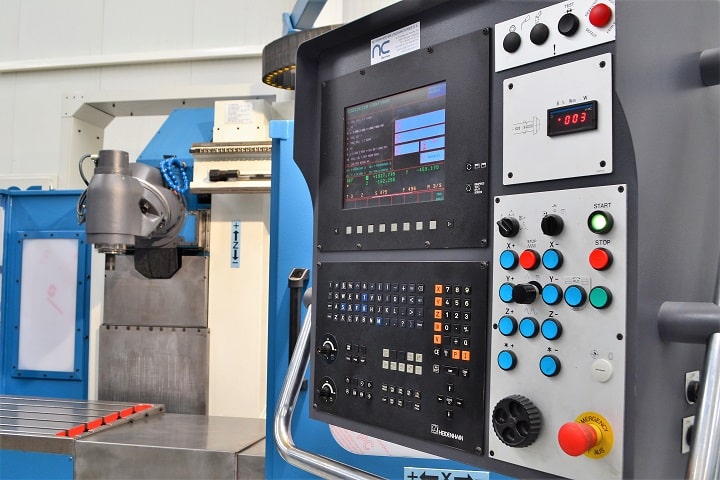

  • Numerical control: HEIDENHAIN TNC-426
Download technical data sheet View video

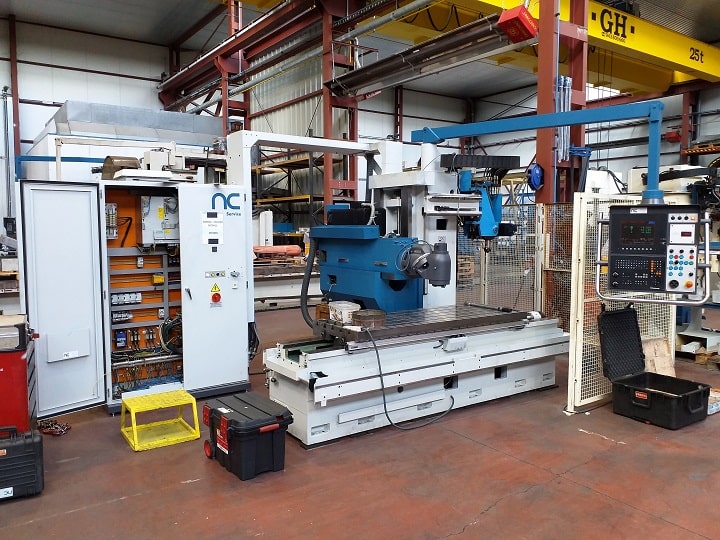

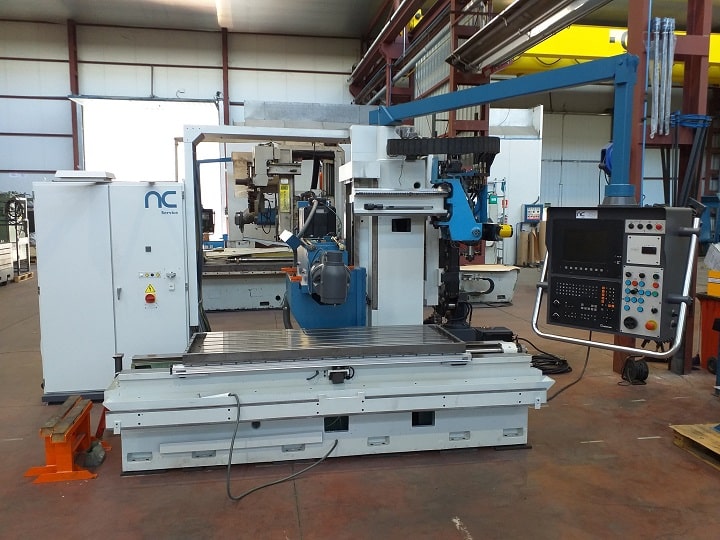

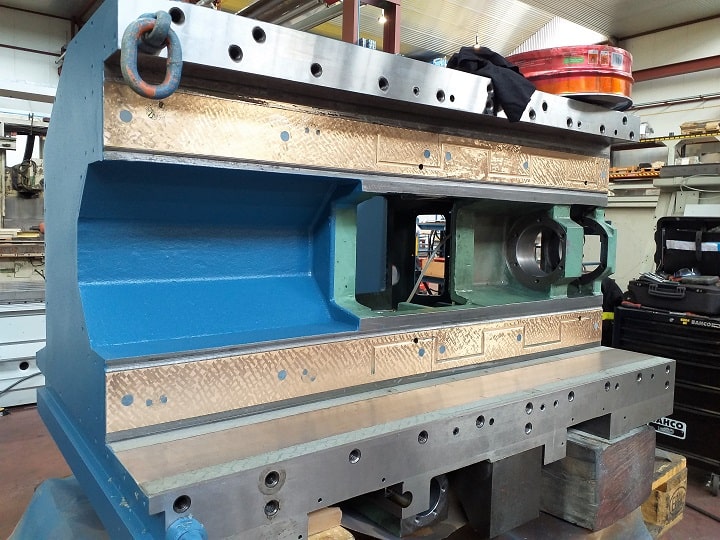

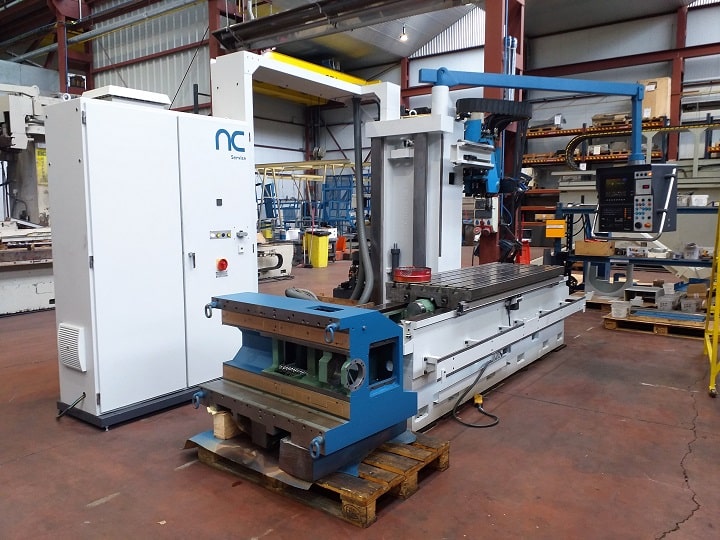

Used CORREA CF22/20 milling machine with total mechanical refurbishment process.

CNC bed type milling machine with excellent machining performance with the execution of geometry and accuracy protocols established by the manufacturer.

CORREA milling machines are a guarantee for your machining! The refurbishment of CORREA milling machine’s by NC Service so does is.

Technical features

Dimensions

  • Table dimensions: 2000 x 700 mm
  • Number of T slots: 5
  • T slots dimensions: 22 mm

Traverses of axis

  • X axis traverse: 2000 mm
  • Y axis traverse: 800 mm
  • Z axis traverse: 800 mm

Milling head

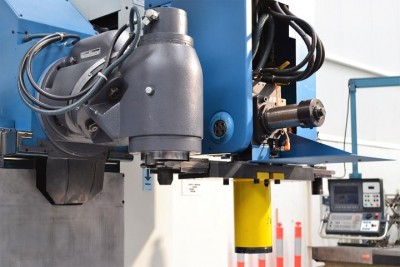

  • Head type: Universal manual (U22)
  • Tool clamping system: Hydraulic
  • Taper nose: ISO 50 (DIN 69871) / Pull stud: DIN 69872
  • Speed range: 20 - 4000 rpm
  • Spindle power: 22 kW

Feedrates

  • Feedrate: 5000 mm/min
  • Rapid feedrate: 12000 mm/min

Weight and dimensions

  • Maximum weight on table: 3500 kg
  • Machine weight approx.: 9000 kg
  • Machine dimensions approx.: 5200 x 3250 x 2760 mm

Accesories

  • External coolant
  • Electronic handwheel: HR-130

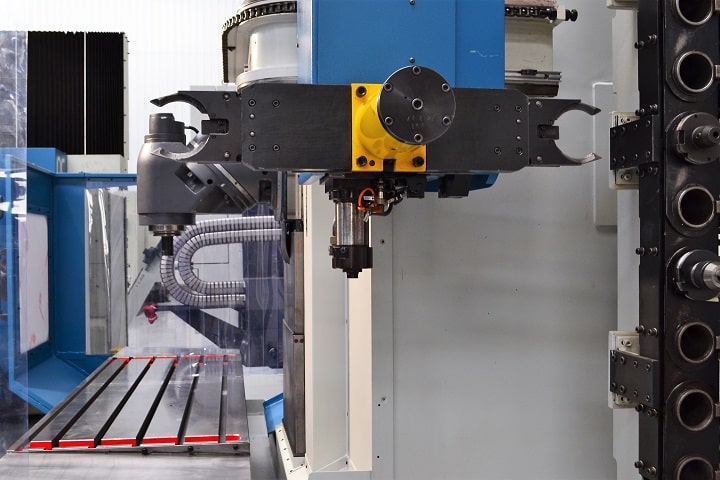

  • Automatic tool changer: ATC-30

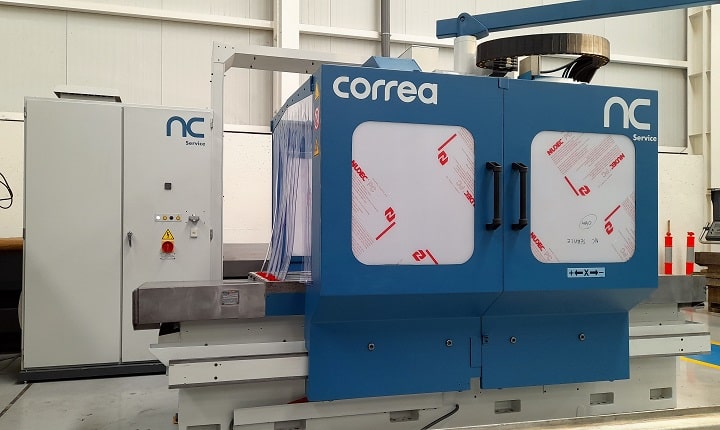

  • Guarding
  • Sale option: 4th axis (PHV-AGNE-450) with Tailstock

Sales conditions

  • Warranty: 6 months mechanical parts
  • Sale price (Ex Work): On request
View all technical features
