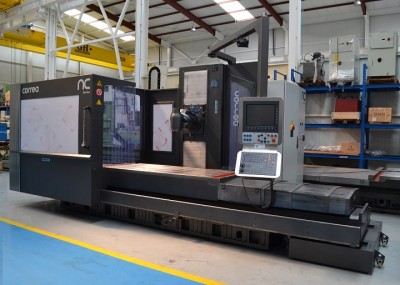

Milling machine CORREA DIANA 20 - 624038

SOLD

Type of milling machine

  • Type: Bed type
  • Brand: Correa
  • Model: DIANA 20
  • Year of manufacture: 2007
  • Retrofitted: 2022

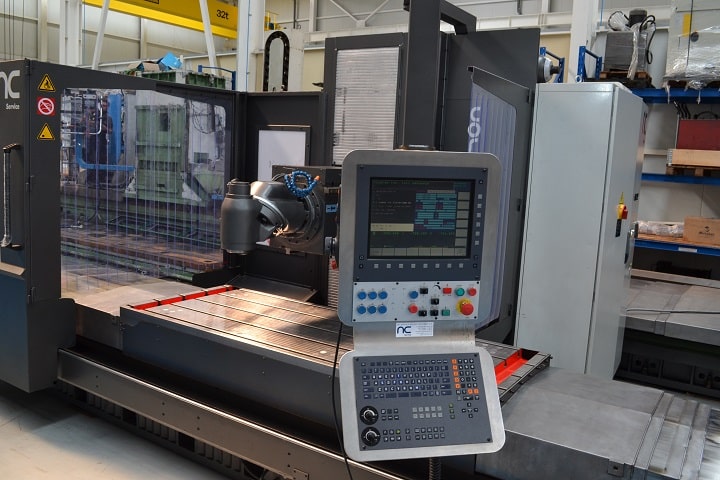

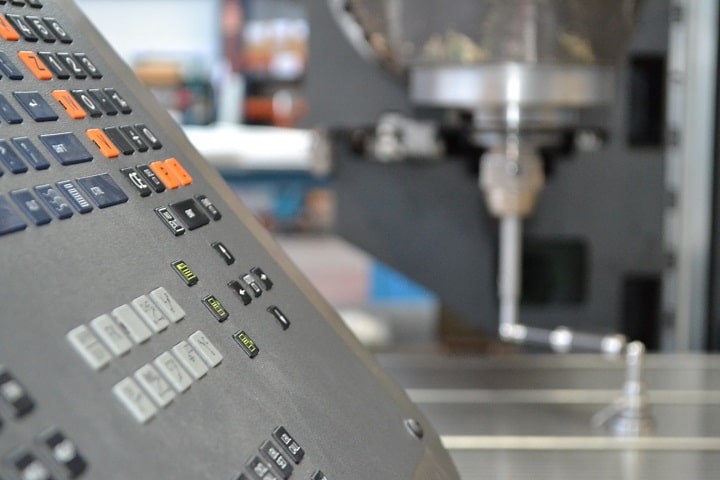

  • Numerical control: HEIDENHAIN TNC-i530
Download technical data sheet View video

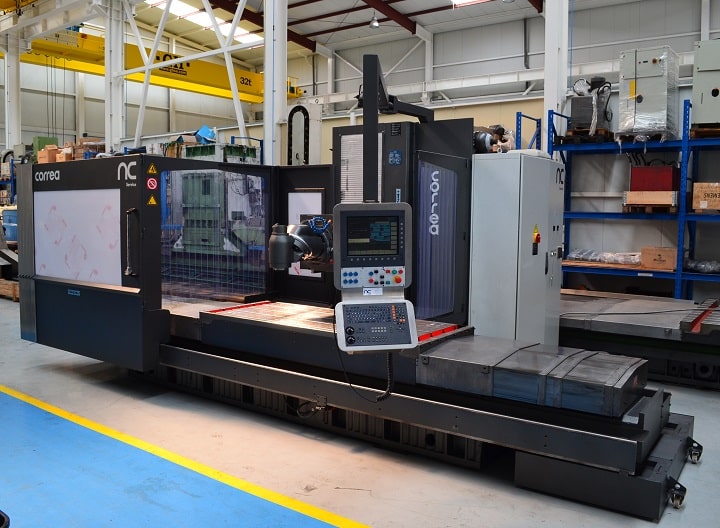

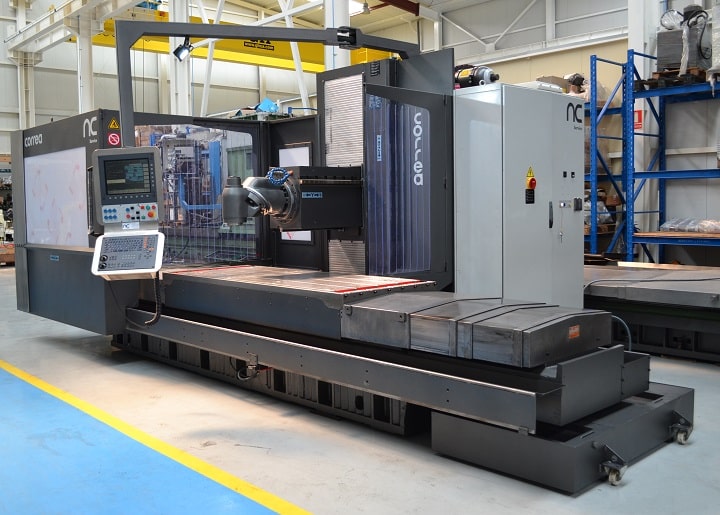

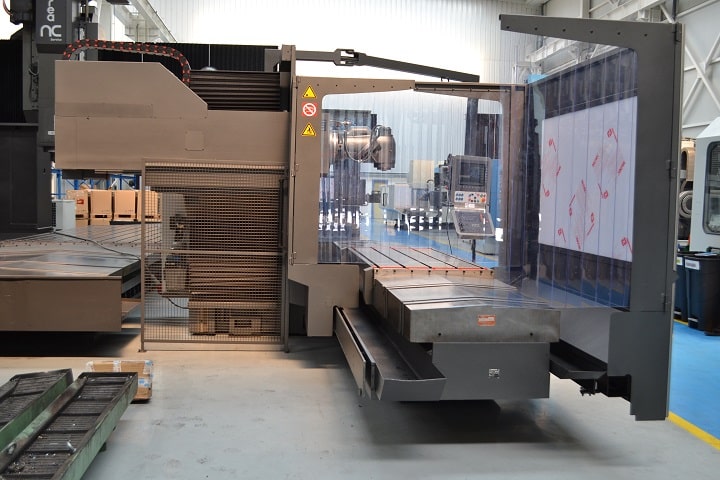

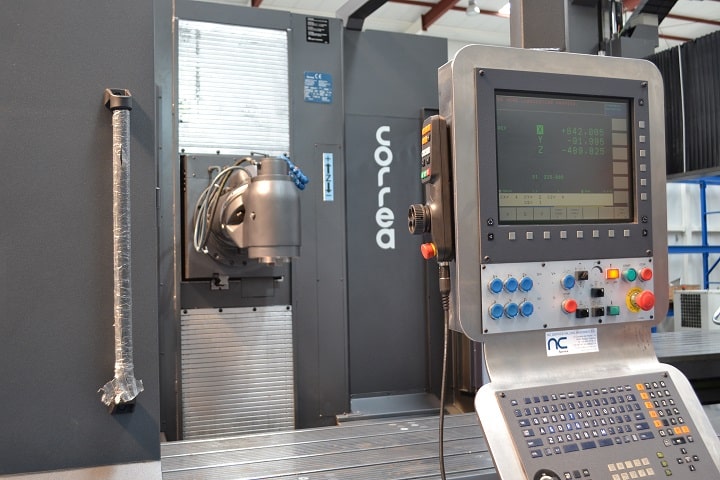

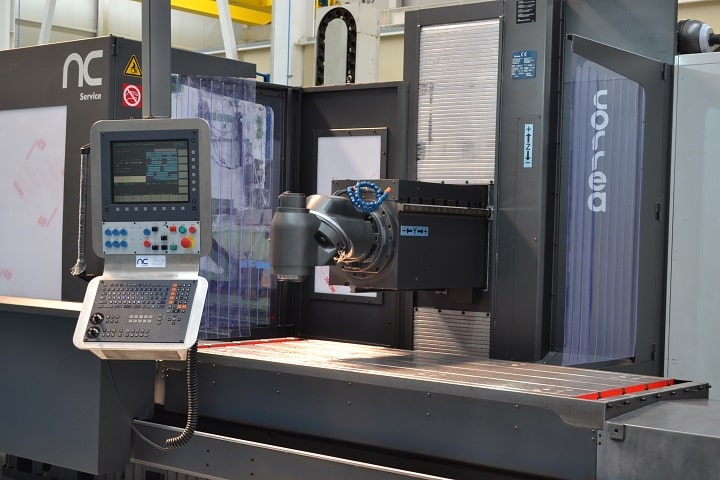

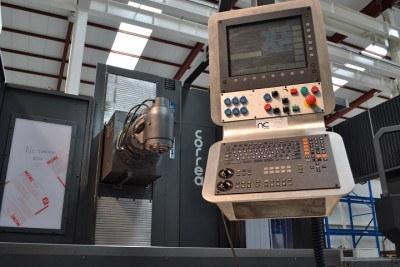

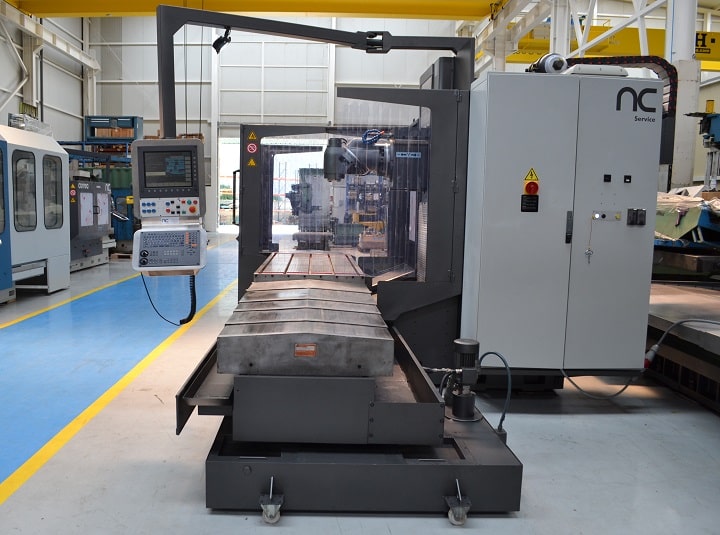

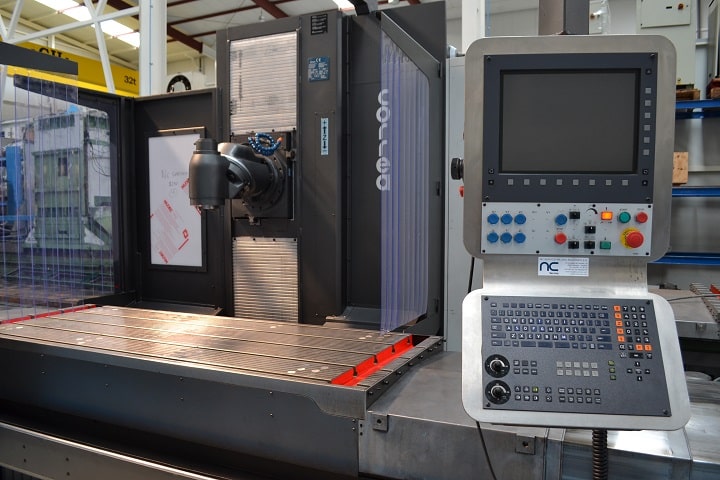

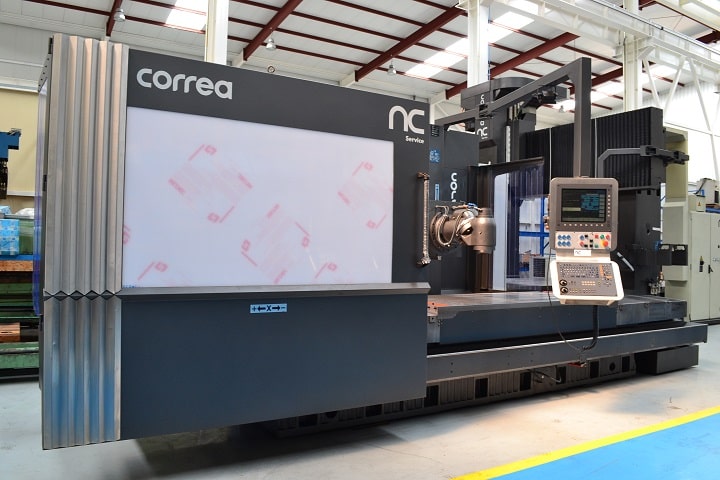

Bed CORREA DIANA 20 milling machine with CNC HEIDENHAIN TNC-i530 and manual milling head.

New design of CORREA milling machines, ideal for manufacturing sectors demanding versatility and rigidity, in addition of enhanced 3-D surface finish.

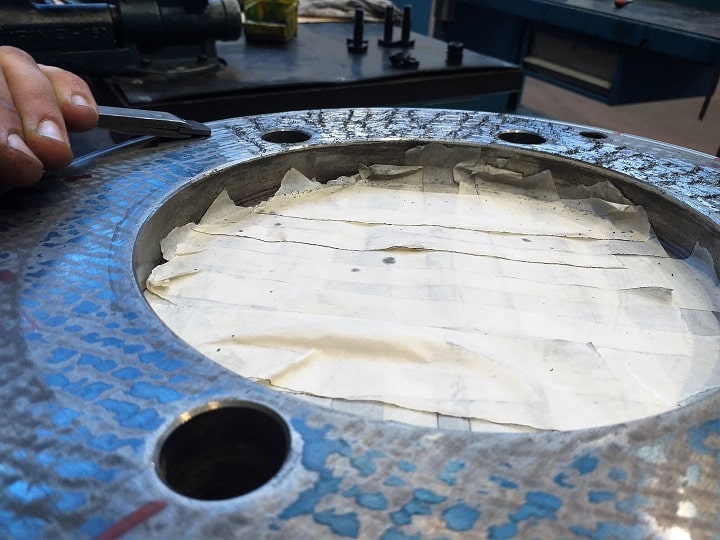

With full retrofitting process by NC Service.

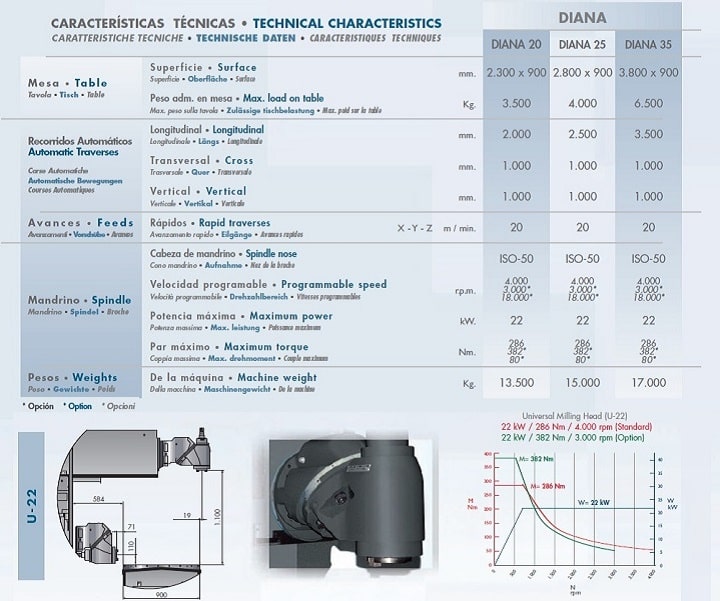

Technical features

Dimensions

  • Table dimensions: 2300 x 900 mm
  • Number of T slots: 5
  • T slots dimensions: 22 mm

Traverses of axis

  • X axis traverse: 2000 mm
  • Y axis traverse: 1000 mm
  • Z axis traverse: 1000 mm

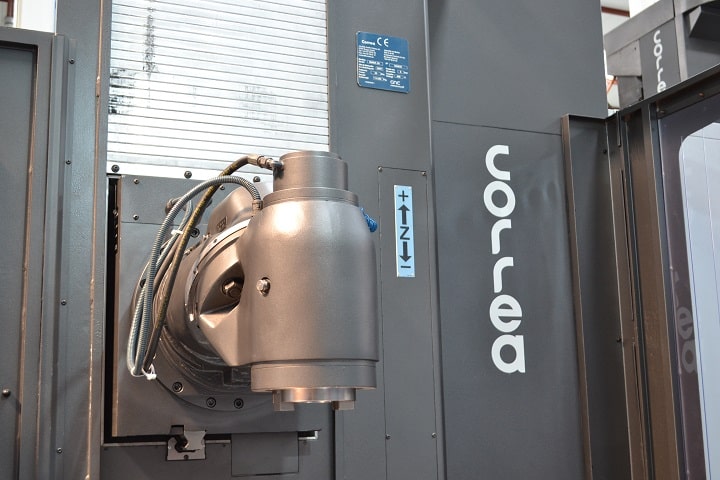

Milling head

  • Head type: Manual milling head (U22)
  • Tool clamping system: Hydraulic
  • Taper nose: ISO 50 (DIN 69871)
  • Speed range: 4000 rpm
  • Spindle power: 22 kW

Feedrates

  • Rapid feedrate (X-Y-Z):   20000 mm/min

Weight and dimensions

  • Maximum weight on table: 3500 kg
  • Machine weight approx.: 14000 kg

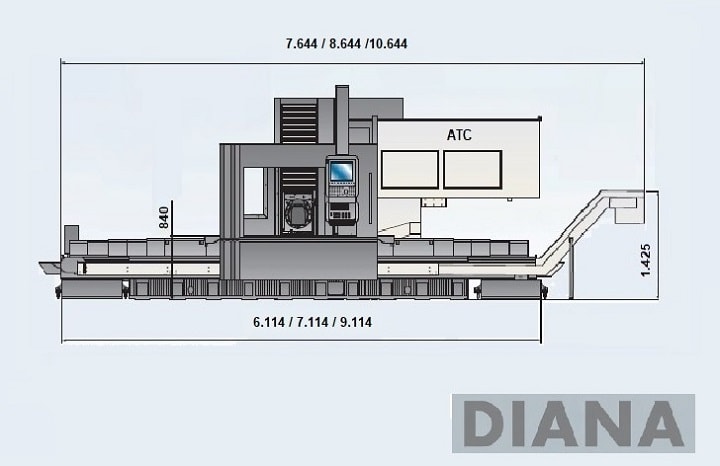

  • Machine dimensions approx.: 6114 x 5070 x 2803 mm

Accesories

  • Guarding
  • External coolant
  • Electronic handwheel: NEW! HR-510

Sales conditions

  • Warranty: 6 months mechanical parts
  • Sale price (Ex Work): On request
View all technical features

Are you interested in this milling machine?

Please send your details and we'll contact you as soon as possible.
