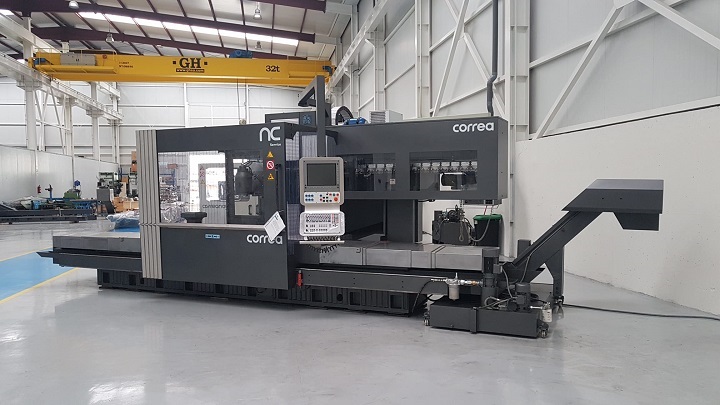

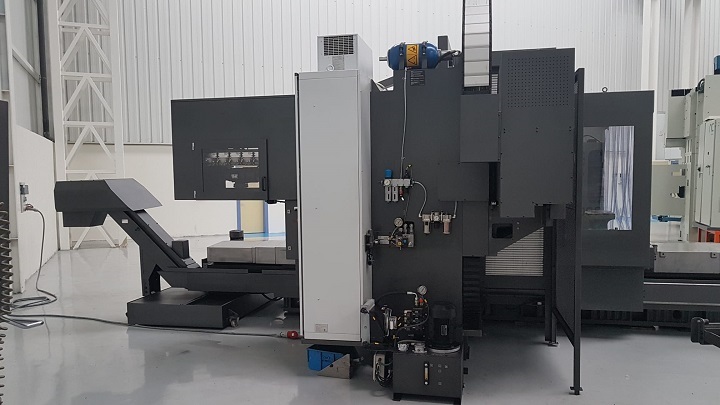

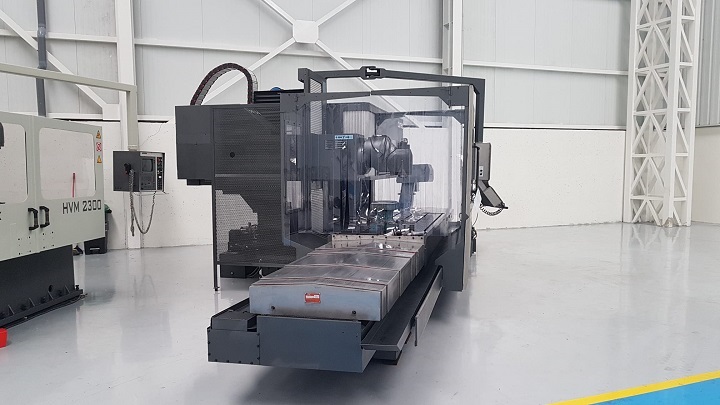

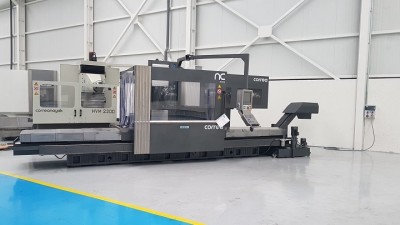

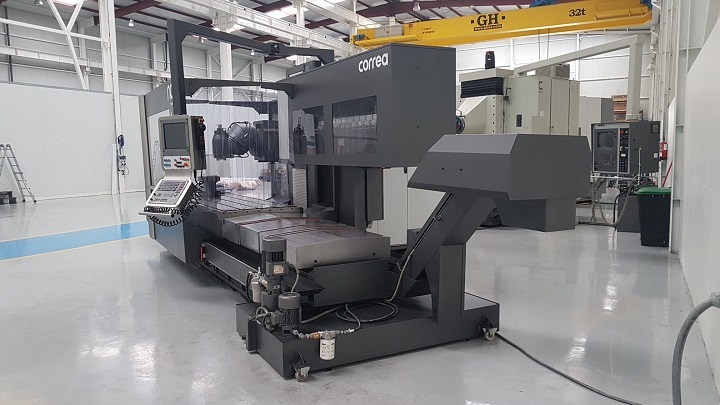

Bed type milling machine CORREA DIANA-25 - 624063

REFURBISHMENT ONGOING

Type of milling machine

  • Type: Bed type
  • Brand: Correa
  • Model: Diana 25
  • Year of manufacture: 2008
  • Retrofitted: 2020
  • Numerical control: HEIDENHAIN TNC-i530
Download technical data sheet

This CORREA DIANA25 bed type milling machine was designed for those sectors that need optimum surface finish in addition to high versatility and rigidity.

Fully retrofitted milling machine, with excellent geometry and accuracy conditions. Guaranteed.

Technical features

Dimensions

  • Table dimensions: 2800 x 900 mm
  • Number of T slots: 5
  • T slots dimensions: 22 mm

Traverses of axis

  • X axis traverse (mm): 2500
  • Y axis traverse (mm): 1000
  • Z axis traverse (mm): 1000

Milling head

  • Head type: Universal Auto-indexing UDG (2.5º)
  • Tool clamping system: Hydraulic
  • Taper nose: ISO 50 (DIN69871)
  • Speed range: 3000 r.p.m.
  • Spindle power: 22 kW

Feedrates

  • Rapid feedrate (X / Y, Z): 20000 mm/min

Weight and dimensions

  • Max weight on table: 4000 kg
  • Machine weight: 15000 kg
  • Machine dimensions: 7114 x 5070 x 2803 mm

Accesories

  • Guarding
  • Automatic tool changer: ATC-30
  • Electronic handwheel: HR-410
  • Coolant through spindle: High pressure
  • Coolant tank and coolant cleaning unit
  • Chip conveyor: longitudinal

Sales conditions

  • Guarantee: 6 months mechanical spare parts
  • Sale price (Ex Work): On request
View all technical features

Are you interested in this milling machine?

Please send your details and we'll contact you as soon as possible.
