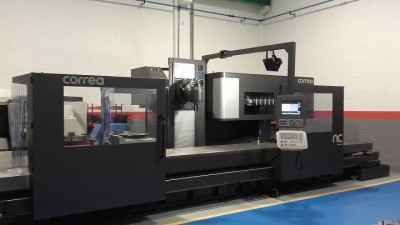

CORREA milling machine DIANA-35 - 2007

SOLD

Type of milling machine

  • Type: Bed type
  • Brand: Correa
  • Model: DIANA 35
  • Year of manufacture: 2007
  • Numerical control: HEIDENHAIN TNC-i530
Download technical data sheet View video

Technical features

Dimensions

  • Table dimensions: 2500 x 900 mm
  • Number of T slots: 5
  • T slots dimensions: 22 mm

Traverses of axis

  • X axis traverse: 3500 mm
  • Y axis traverse: 1000 mm
  • Z axis traverse: 1000 mm

Milling head

  • Head type: 2,5º Universal Auto-indexing head UDG.
  • Tool clamping system: Hydraulic
  • Taper nose: ISO 50
  • Speed range: 3000 rpm
  • Spindle power: 30 kW

Feedrates

  • X/Y,Z Rapid feedrate: 20000 mm/min

Weight and dimensions

  • Maximum weight on table: 5000 Kg
  • Machine weight: 17000 Kg
  • Machine dimensions: 10000 x 5070 x 2850 mm

Accesories

  • Guarding
  • Automatic tool changer: ATC-30
  • 4th Axis Rotary table: 0,001º  /  Diameter: 400 mm
  • Electronic handwheel: HR-410
  • Coolant system, internal through spindle

Sales conditions

  • Warranty: 6 months mechanical parts
  • Sale price (Ex Work): On request
View all technical features
