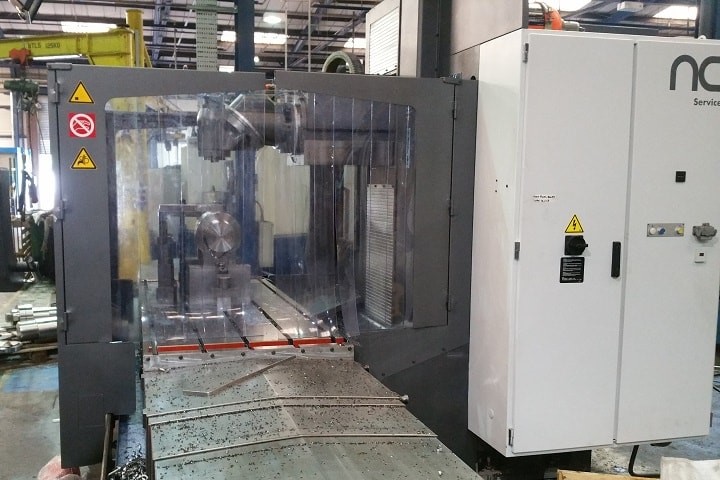

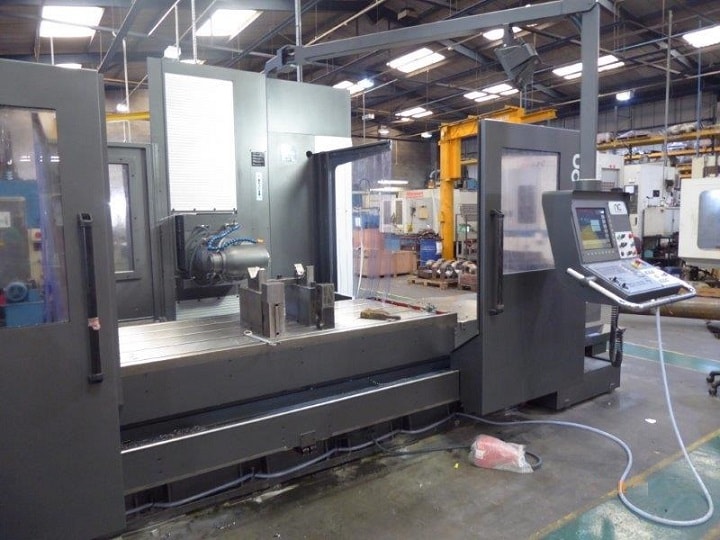

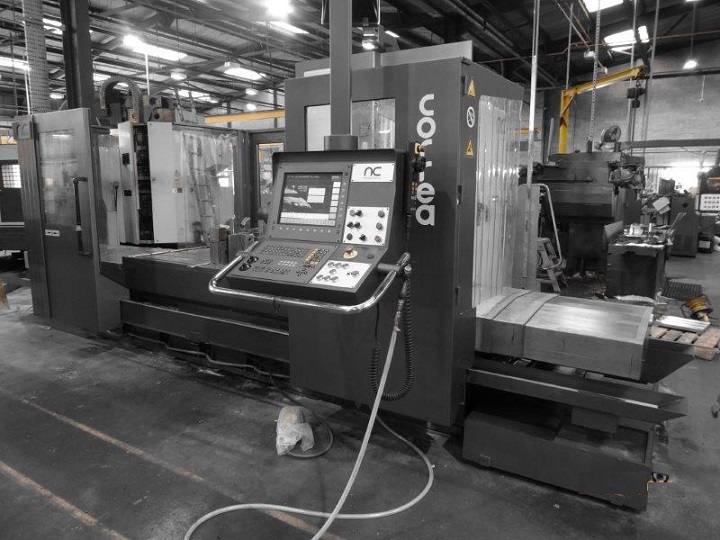

Milling machine Correa Prisma-20 - 2004

SOLD

Type of milling machine

  • Type: Bed type
  • Brand: Correa
  • Model: PRISMA 20
  • Year of manufacture: 2004

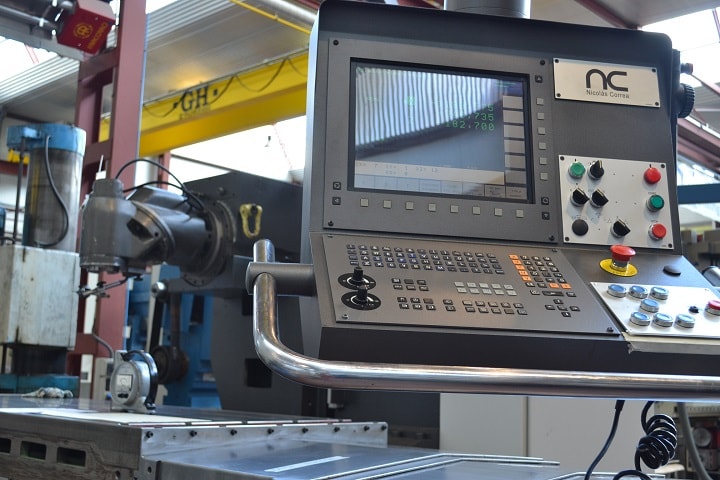

  • Numerical control: HEIDENHAIN TNC 530
Download technical data sheet

Technical features

Dimensions

  • Table dimensions: 2300 x 900 mm
  • Number of T slots: 5
  • T slots dimensions: 22 mm

Traverses of axis

  • X axis traverse: 2000 mm
  • Y axis traverse: 1000 mm
  • Z axis traverse: 1000 mm

Milling head

  • Head type: Universal Manual U-40
  • Tool clamping system: Hydraulic
  • Taper nose: ISO 50
  • Speed range: 20 - 3000 rpm
  • Spindle power: 22 kW

Feedrates

  • X/Y,Z Rapid feedrate: 20000 / 12000 mm/min

Weight and dimensions

  • Maximum weight on table: 3500 Kg
  • Machine weight: 14000 Kg
  • Machine dimensions: 6367 x 5070 x 2803 mm

Accesories

  • Guarding
  • Electronic handwheel: HR-410
  • External coolant

Sales conditions

  • Warranty: 6 months mechanical parts
  • Sale price (Ex Work): On request
View all technical features
