Milling machine CORREA PRISMA 20 - 967609

REFURBISHMENT ONGOING

Type of milling machine

  • Type: Bed type
  • Brand: Correa
  • Model: PRISMA 20
  • Year of manufacture: 2006
  • Retrofitted: 2021/2022
  • Numerical control: HEIDENHAIN TNC-i530

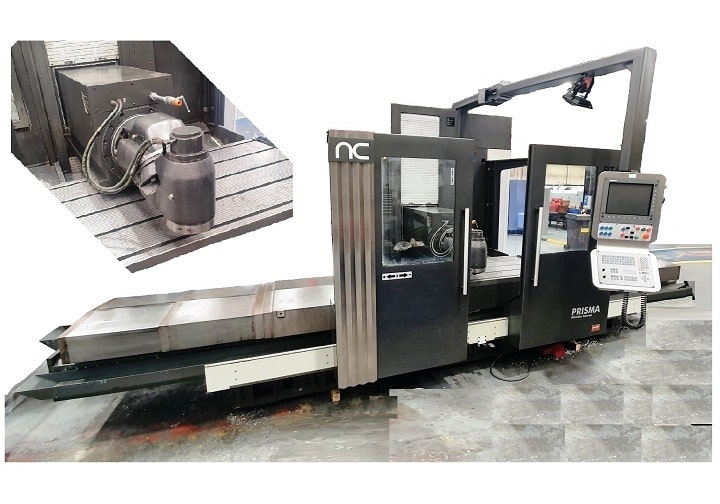

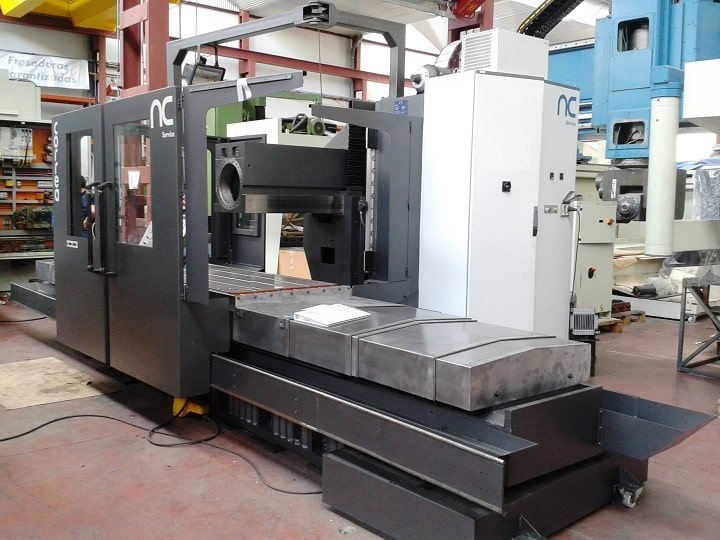

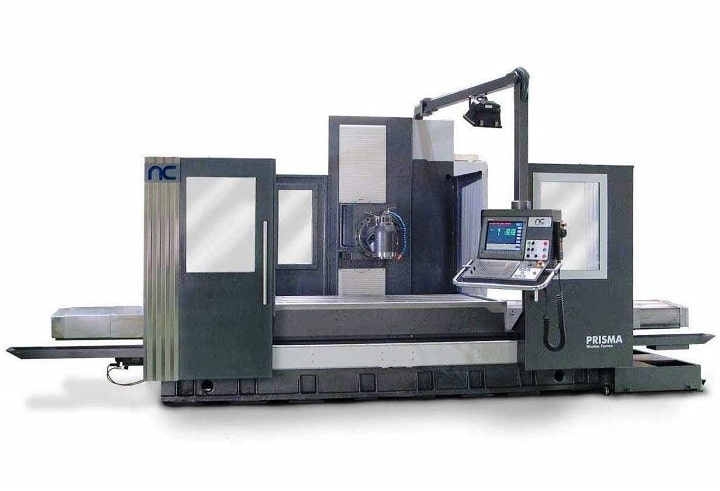

CORREA PRISMA 20 milling machine, bed type. With CNC HEIDENHAIN TNC-i530 and manual milling head.

CORREA model milling machine with versatile and highly rigid design for machining with excellent performance.

Guaranteed refurbishment by NC Service.

Technical features

Dimensions

  • Table dimensions: 2300 x 900 mm
  • Number of T slots: 5
  • T slots dimensions: 22 mm

Traverses of axis

  • X axis traverse: 2000 mm
  • Y axis traverse: 1000 mm
  • Z axis traverse: 1000 mm

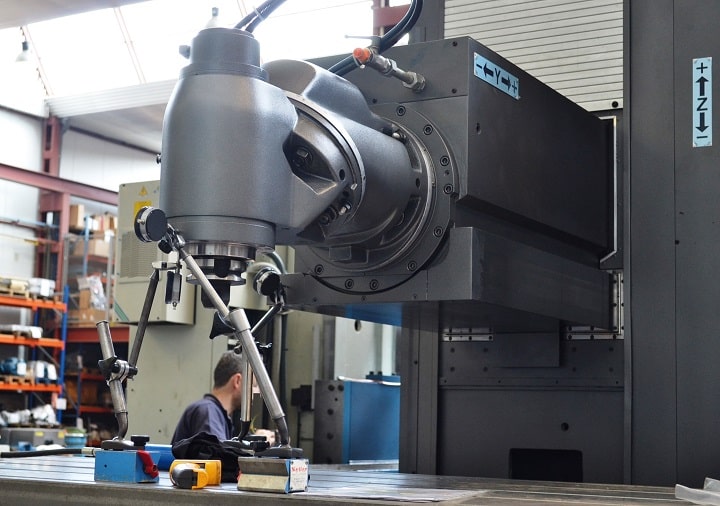

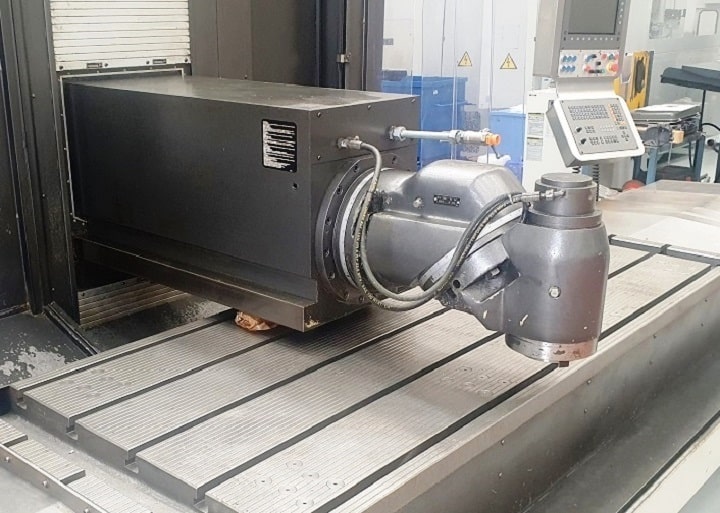

Milling head

  • Head type: Manual milling head (U22)
  • Tool clamping system: Hydraulic
  • Taper nose: ISO 50 (DIN 69871)
  • Speed range: 3000 rpm
  • Spindle power: 22 kW

Feedrates

  • Rapid fedérate (X / Y-Z): 12000 mm/min   /   20000 mm/min

Weight and dimensions

  • Maximum weight on table: 3500 kg
  • Machine weight approx.: 14000 kg
  • Machine dimensions approx.: 6367 x 5070 x 2803 mm

Accesories

  • External coolant
  • Electronic handwheel: HR-410
  • Guarding

Sales conditions

  • Warranty: 6 months mechanical parts
  • Sale price (Ex Work): On request
