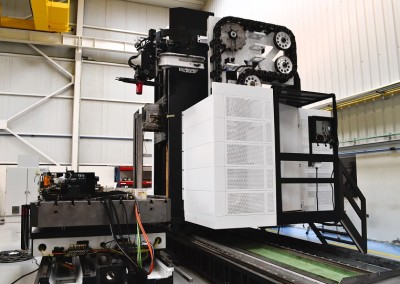

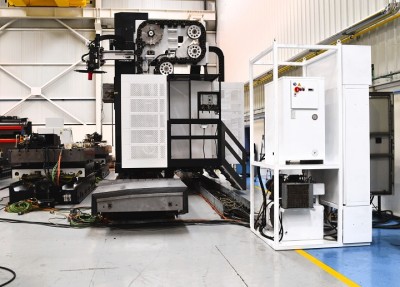

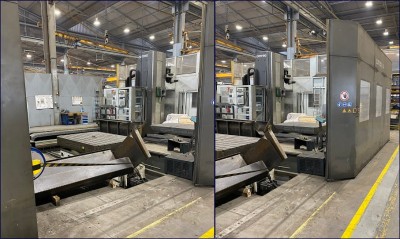

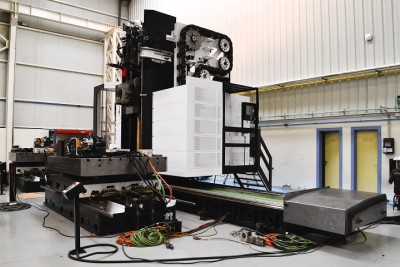

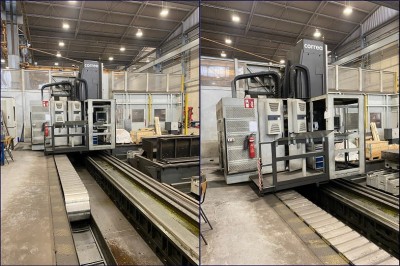

Milling machine CORREA AXIA 100 - 785056

Technical features

Dimensions

• Table dimensions: Optional
• Maximum weight on table (kg/m²): Optional
• Number of T slots: Undefined
• T slots dimensions: Undefined

Traverses of axis

• X axis traverse: 10000 mm
• Y axis traverse: 1500 mm
• Z axis traverse: 2500 mm
• Vertical capacity (VC): 0 - 2500 mm (adjustable)

Milling head

• Head type: Universal Auto-indexing UAD (0,02º)
• Tool clamping system: Hydraulic
• Taper nose: ISO 50 (DIN 69871) / Pull stud: DIN 69872
• Speed range: 20 - 6000 rpm
• Spindle power: 30 kW

Feedrates

• Rapid feedrate (X / Y-Z): 30000 mm/min

Weight and dimensions

• Machine weight approx.: 70000 kg
• Machine dimensions approx.: 17560 x 12800 x 4270 mm

Accesories

• Guarding: pendular with automatic front door and peripheral safety fence
• Automatic tool changer: ATC80 with electrical motors
• Chip conveyor: 1 front longitudinal and 1 transversal
• External coolant & high-pressure coolant through spindle
• Electronic handwheel: 6FX2007-1AE14 Siemens
• Operator´s cabinet: adjustable in vertical traverse

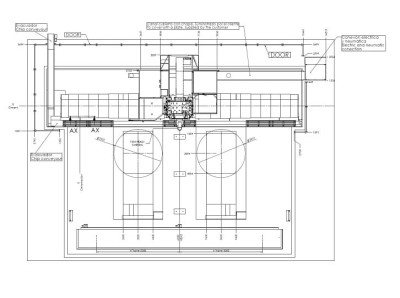

Other technical features

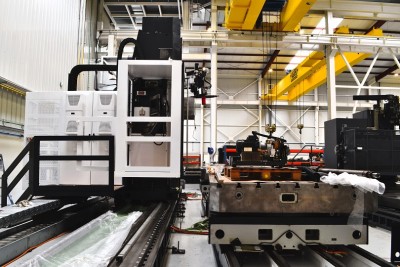

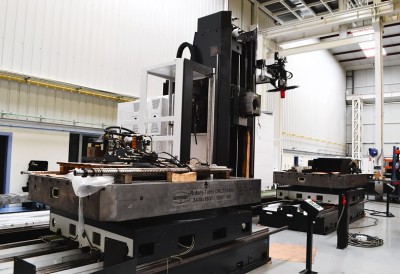

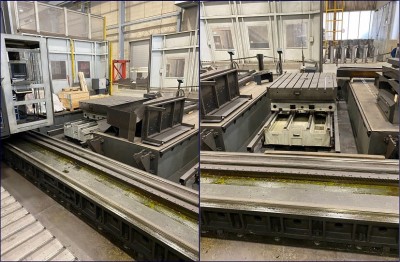

• 2 ROTARY TABLES:
• Model:   DEMMELER DRLTS1800
• Table surface: 2400 x 1800 mm
• Maximum load on table: 40 T
• T slots number: 9
• T slots dimensions: 22 mm
• Rotary axis: Hydrostatic
• Maximun speed (S1/S6): 3.4 / 5.4 r.p.m.
• Clamped tangencial torque: 175000 Nm
• W axis: 1500 mm.
• Maximum feedrate: 20000 mm/min.
• Quantity of guideway (W axis): 4
