Milling-Boring machine ANAYAK HVM-6000 - 20010601

REFURBISHMENT ONGOING

Type of milling machine

  • Type: Travelling Column
  • Brand: Anayak
  • Model: ANAYAK HVM-6000
  • Year of manufacture: 2001
  • Retrofitted: 2026
  • Numerical control: HEIDENHAIN TNC-426
Download technical data sheet

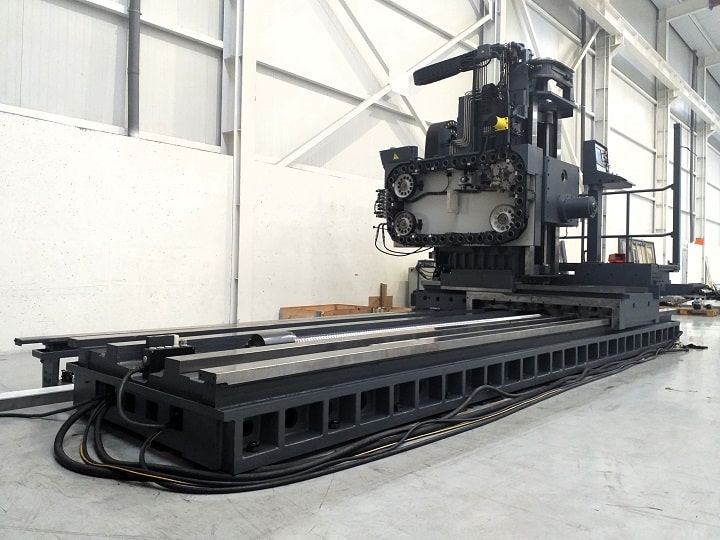

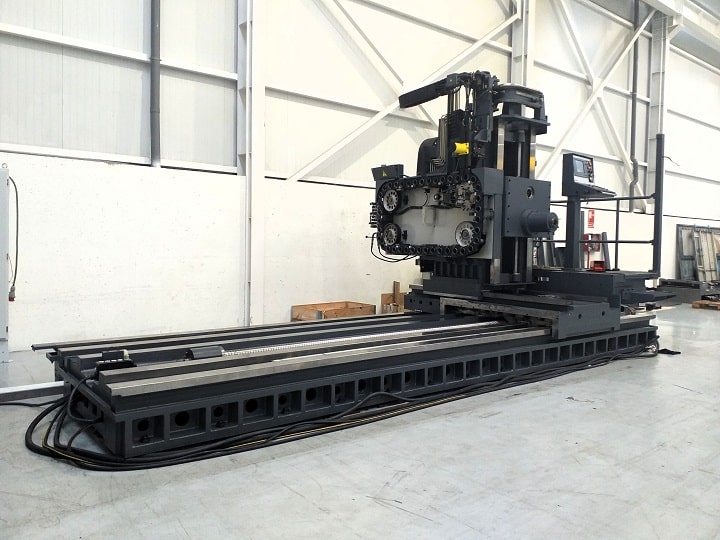

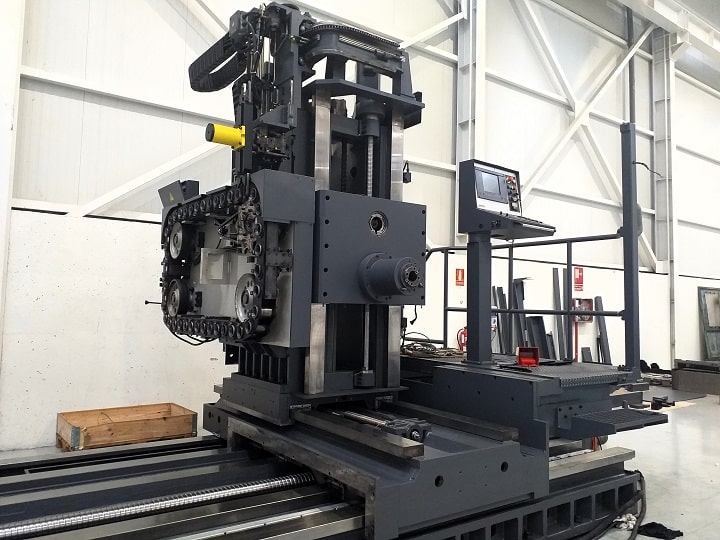

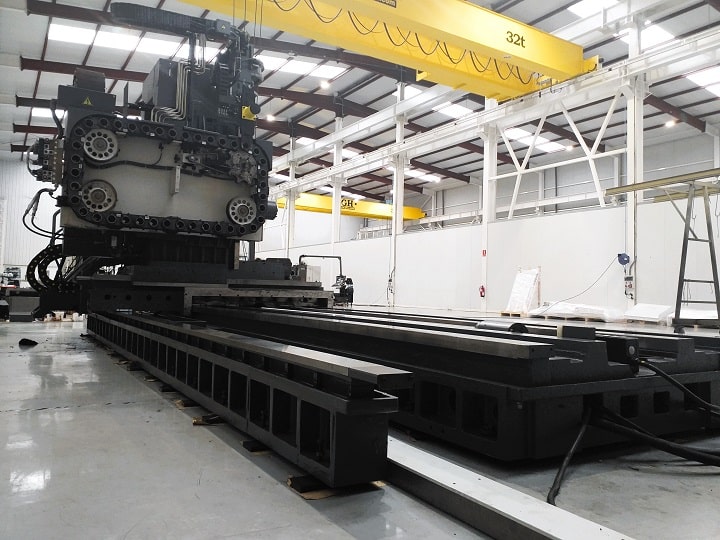

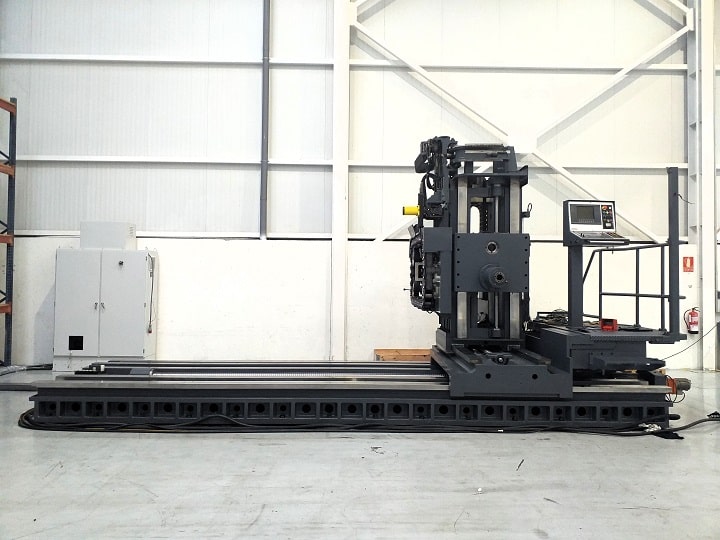

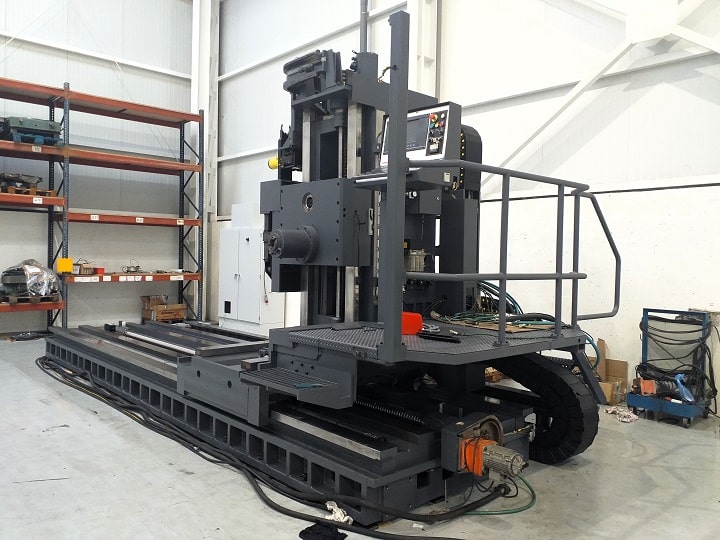

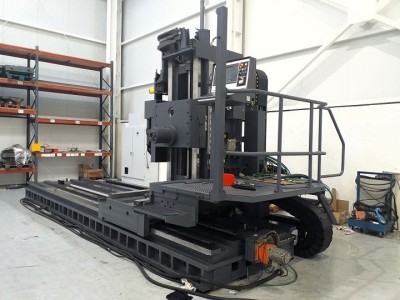

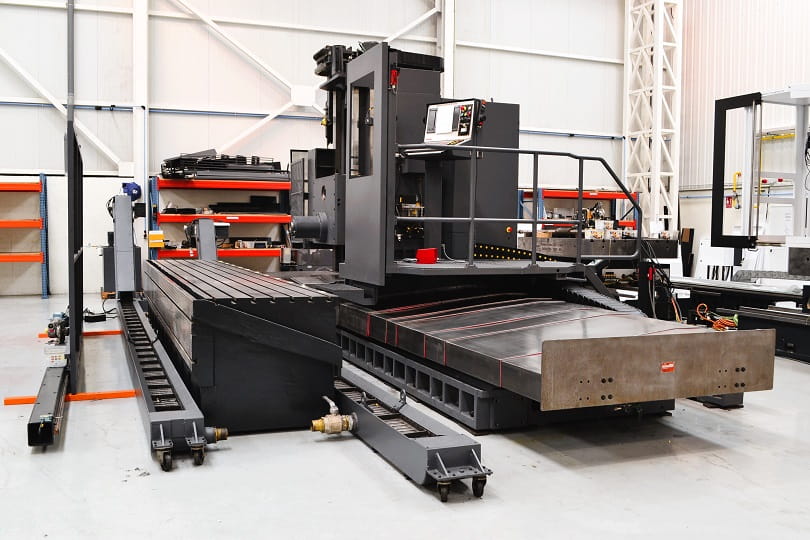

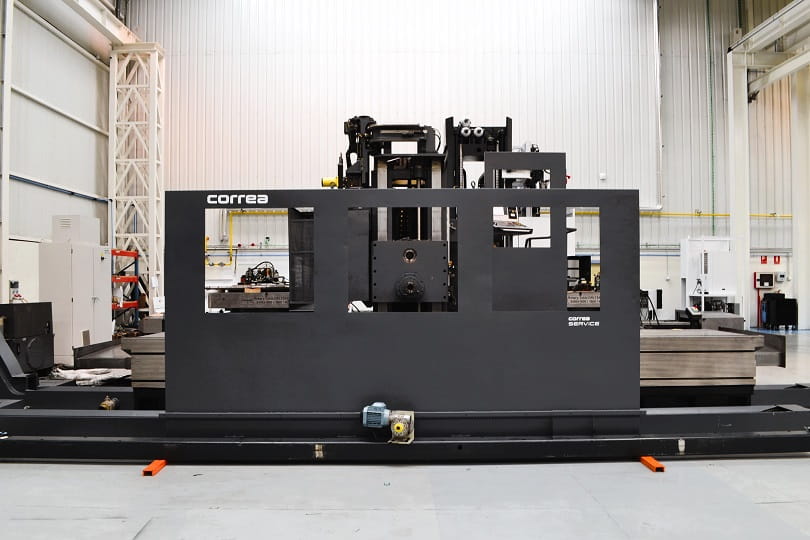

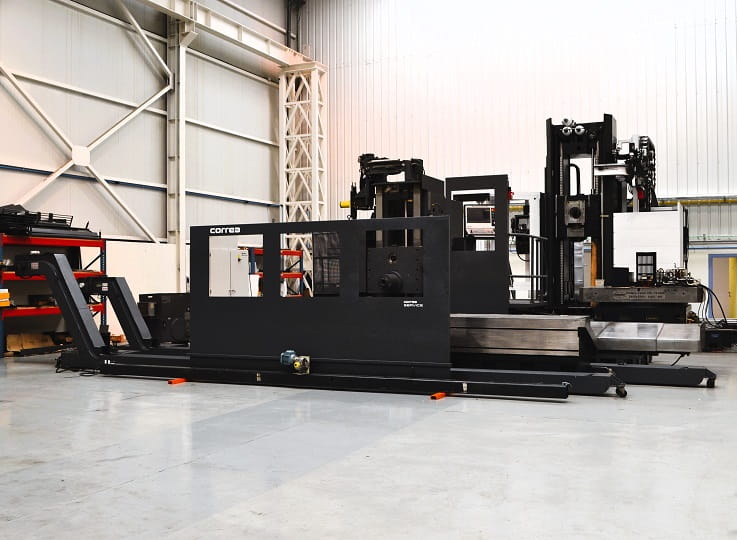

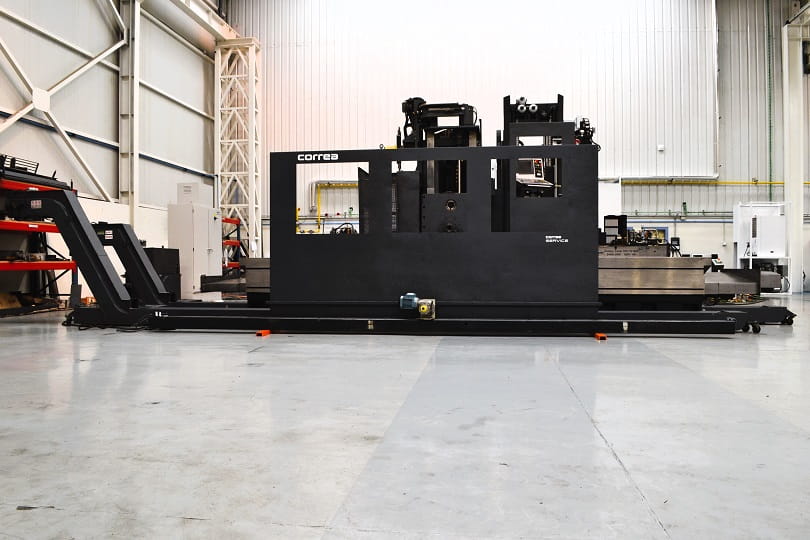

ANAYAK HVM-6000 milling machine, with control unit HEIDENHAIN TNC-426 and fixed frontal boring head.

Sale of used CNC ANAYAK milling machine, fully inspected by CORREA Service. With retrofitting guarantee.

Technical features

Dimensions

  • Table dimensions: 6000 x 1000 mm
  • Number of T slots: 7
  • T slots dimensions: 22 mm

Traverses of axis

  • Longitudinal traverse X: 5300 mm
  • Vertical traverse Y: 1050 mm
  • Transversal traverse Z: 1500 mm
  • Vertical capacity (VC): 80 - 1130

Milling head

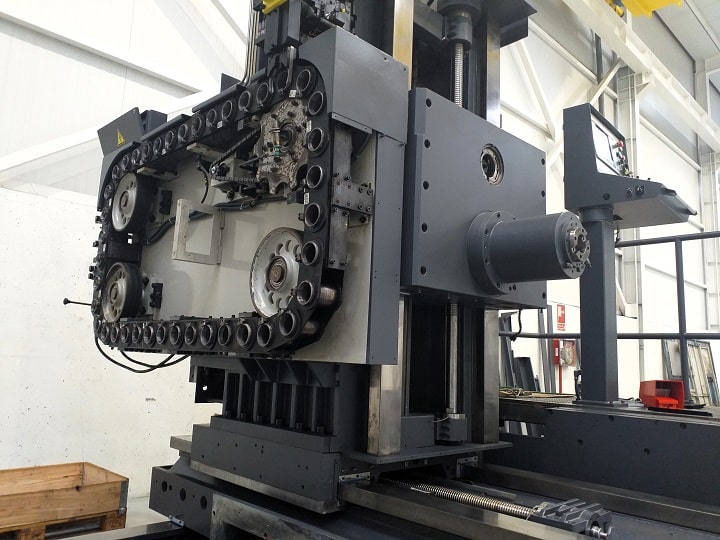

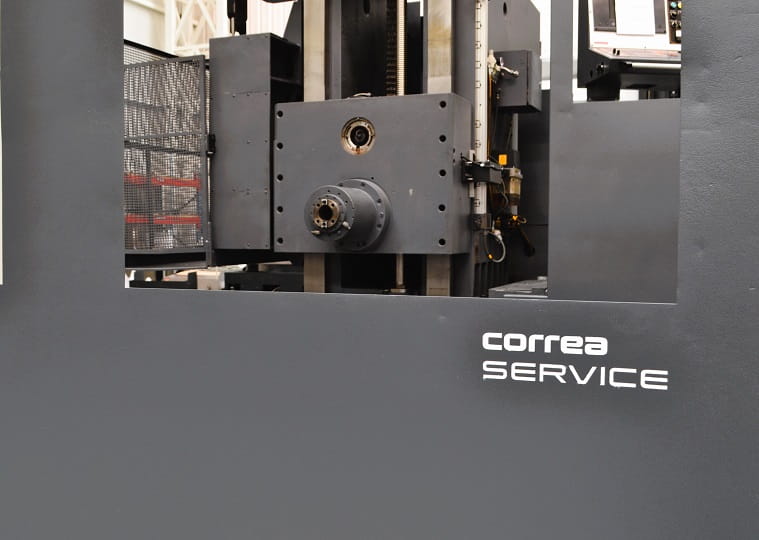

  • Head type: Fixed frontal
  • Tool clamping system: Hydraulic
  • Taper nose: ISO 50 (DIN 69871)   /   Pull stud: DIN 69872-B
  • Speed range: 60 - 3000 rpm
  • Spindle power: 22/30 kW

Feedrates

  • Feedrate: 5000 mm/min
  • Rapid feedrate (X,Y,Z): 10000 mm/min

Weight and dimensions

  • Maximum weight on table: Undetermined
  • Machine weight approximate: 43000 kg
  • Machine dimensions approximate: 11560 x 6150 x 3538 mm

Accessories

  • Guarding: 2 front sliding doors
  • Automatic tool changer: ATC40

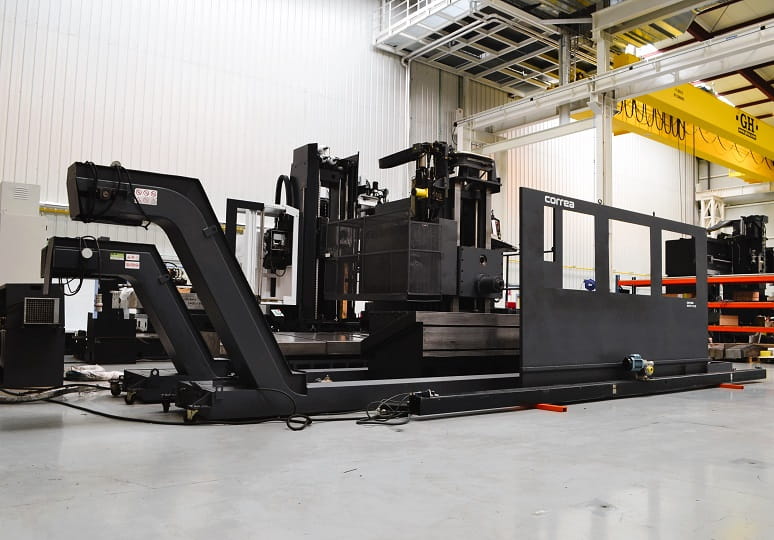

  • Chip conveyor: 2 longitudinals hinge type
  • Electronic handwheel: HR-410
  • Coolant: External

Sale conditions

  • Warranty: 6 months mechanical parts
  • Price and sale conditions: On request
View all technical features
