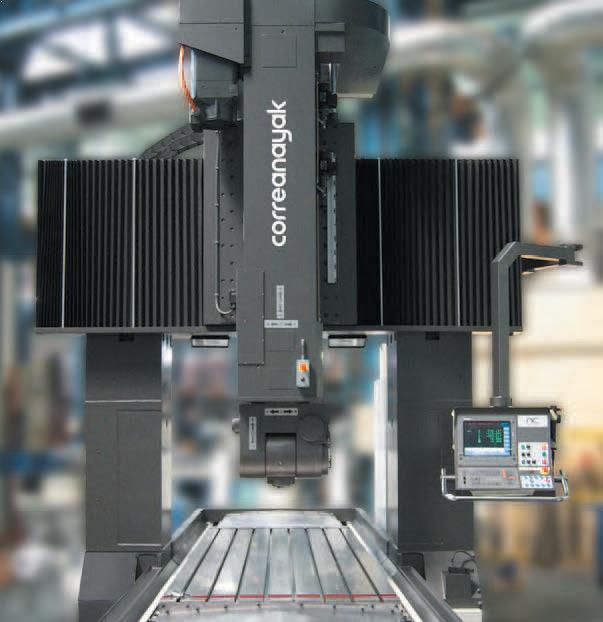

CORREA FP Milling machine

Type of machine

  • Type: Milling machine
  • Brand: CORREA
  • Model: FP
  • Numerical control:
Download technical data sheet

Technical features

Dimensions

  • Surface mm:
    • FP-30: 2500-3500 x 2000
    • FP-35: 3500-4500 x 2000
    • FP-40: 4500-5500 x 2000
  • Max. load table:
    • FP-30: 10.000
    • FP-35: 10.000
    • FP-40: 10.000

Traverses of axis

  • Longitudinal mm:
    • FP-30: 2.500
    • FP-35: 3.500
    • FP-40: 4.000
  • Cross mm:
    • FP-30: 2.000
    • FP-35: 2.500-3.000
    • FP-40: 3.000
  • Vertical mm:
    • FP-30: 800-1.000
    • FP-35: 800-1.000
    • FP-40: 1.000
  • Distance between columns mm:
    • FP-30: 1.740
    • FP-35: 2.300-2.500
    • FP-40: 2.500
  • Distance table-spindle mm:
    • FP-30: 250-1.050|450-1.250 / 250-1.250|500-1.500
    • FP-35: 250-1.050|250-1.250 / 450-1.250|500-1.500
    • FP-40: 500-1.500|750-1.750

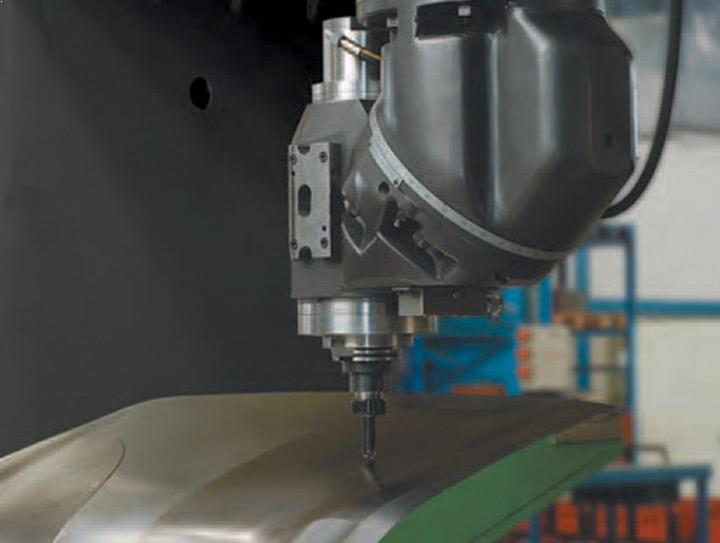

Milling head

  • Spindle nose: ISO-50 / BT-50 / HSK-100
  • Programmable speed r.p.m.: 5.000 - 3.000
  • Maximum power kw: 30
  • Maximum torque Nm: 725 - 1.201

Feedrates

  • Maximum mm/min:
    • x
      • FP-30: 15.000
      • FP-35: 15.000
      • FP-40: 15.000
    • y
      • FP-30: 12.000
      • FP-35: 12.000
      • FP-40: 12.000
    • z
      • FP-30: 12.000
      • FP-35: 12.000
      • FP-40: 12.000

Weight and dimensions

  • Machine weight:
    • FP-30: 25.500-27.000
    • FP-35: 30.500-33.000-34.000
    • FP-40: 35.500

Accesories

STANDARD

  • Heidenhain CNC system
  • Double row roller type linear bearings on the X axis
  • H&G Steel way inserts in conjunction with non friction material counterslides on the Y&Z axes
  • Pre-loaded double nut ball leadscrews on all 3 axes
  • Linear scales feedback system on all 3 axes
  • Hydraulic counterbalance on the vertical axis
  • Coolant equipment
  • EU guarding

OPTIONS

  • Automatic head changer
  • Automatic tool changers
  • 10-post model tool rack magazine
  • Chip conveyors
  • High pressure coolant unit. Coolant through spindle
  • Divinding plates controlled by 4th axis
  • Full guarding
