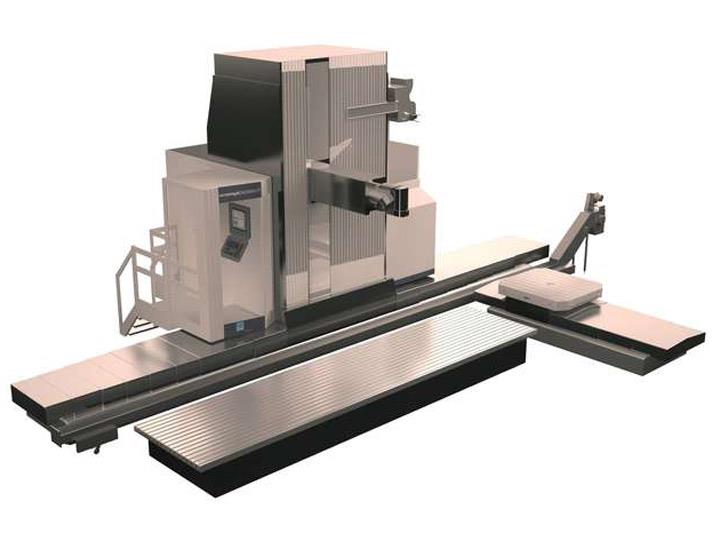

CORREA NORMA-FT Milling machine

Type of machine

  • Type: Milling machine
  • Brand: CORREA
  • Model: NORMA-FT
  • Numerical control:
Download technical data sheet

Technical features

Dimensions

  • Surface mm: 4.800 x 1.000 / 23.000 x 3.000
  • Max. load on table kg/m2: 10.000 – 15.000

Traverses of axis

  • Longitudinal mm: 4.000 / 22.000
  • Cross mm: 1.250
  • Vertical mm: 1.500 / 2.000

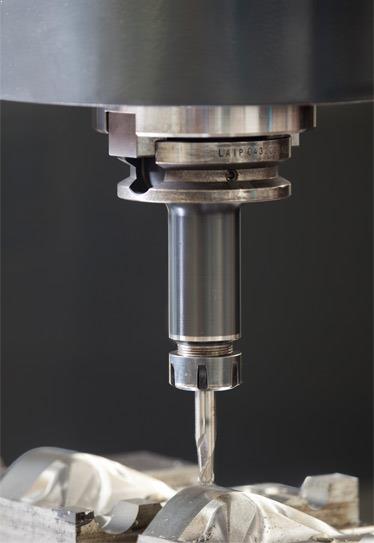

Milling head

  • Spindle nose: ISO-50 / HSK-100
  • Programmable speed r.p.m.: 3.000 / 6.000
  • Maximum power kw: 24 / 33
  • Maximum torque Nm: 1.300

Feedrates

  • Maximum mm/min:
    • x: 30/40
    • y: 20
    • z: 20

Accesories

STANDARD

  • CNC Heidenhain
  • Ram guide: 2 linear guides (one on the side and another at the bottom of the ram)
  • Large section and properly ribbed structural elements

OPTIONS

  • Measurement and tool presetting touch probes
  • Automatic tool changer
  • Swarf managment system
  • Coolant equipment
  • Cleaning gun
  • MQL outer tool microlubrication system
View all technical features
