CNC Milling machine CORREA FP40/40 – 895199

REFURBISHMENT ONGOING

Type of milling machine

  • Type: Bridge type
  • Brand: Correa
  • Model: FP40/40
  • Year of manufacture: 2004
  • Retrofitted: 2023
  • Numerical control: HEIDENHAIN TNC-530
Download technical data sheet

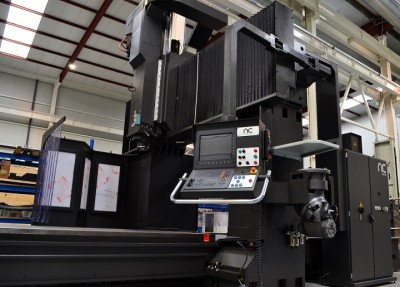

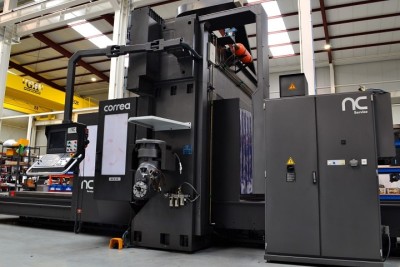

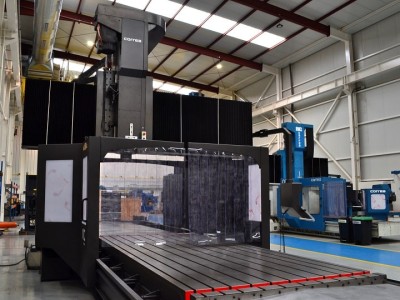

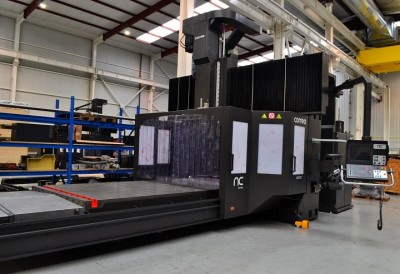

Second hand CORREA FP40/40 milling machine fully mechanical refurbished, with installation of new Auto-indexing milling head UDG with rotation every 2.5º. This CNC milling machine has 4 meters of longitudinal traverse and more than 2 and a half meters between columns, offering a very precise machining with an excellent combination of rigidity and dynamic performance. The direct exist vertical spidle allows up to 5.000 r.p.m. With automatic tool changer of 30 tools and HEIDENHAIN TNC-i530.

Fully mechanically retrofitted and with guarantees.

Technical features

Dimensions

  • Table dimensions: 4000 x 2000 mm
  • Number of T slots: 11
  • T slots dimensions: 22 mm

Traverses of axis

  • X axis traverse: 4000 mm
  • Y axis traverse: 3000 mm
  • Distance between columns: 2530 mm
  • Z axis traverse: 1000 mm

Milling head

  • Head type: NEW! Auto-indexing UDG (2.5º)
  • Tool clamping system: Hydraulic
  • Taper nose: ISO50
  • Speed range: 20 - 3.000 rpm (5.000 rpm vertical spindle)
  • Spindle power: 30 kW

Feedrates

  • Feedrate: 7000 mm/min
  • Rapid feedrate (X / Y,Z): 15000 / 12000 mm/min

Weight and dimensions

  • Maximum weight on table: 10000 Kg
  • Machine weight approximate: 24900 Kg
  • Machine dimensions approximate: 10748 x 4710 x 4400 mm

Accesories

  • Guarding
  • Coolant: External.High pressure internal through spindle
  • Automatic tool changer: ATC-30
  • Electronic handwheel: HR-420

Sales conditions

  • Guarantee: 6 months mechanical parts
  • Sale price (Ex Work): On request
View all technical features

Are you interested in this milling machine?

Please send your details and we'll contact you as soon as possible.
