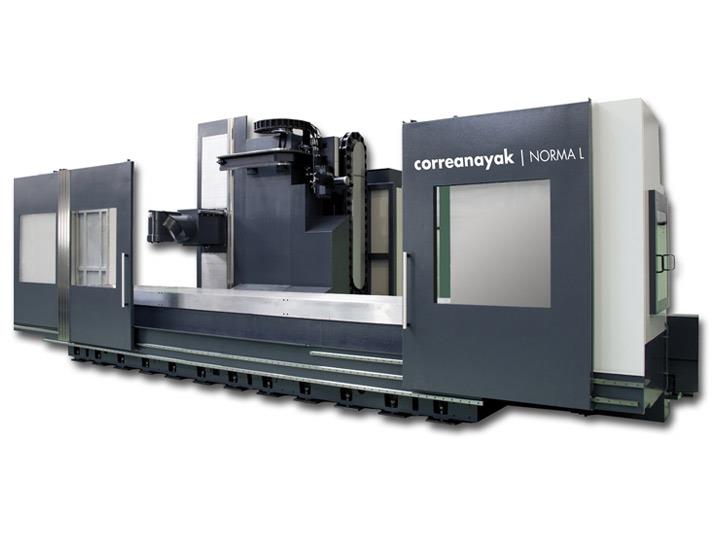

CORREA NORMA-L Milling machine

Type of machine

  • Type: Milling machine
  • Brand: CORREA
  • Model: NORMA-L
  • Numerical control:
Download technical data sheet

Technical features

Dimensions

  • Surface mm:
    • NORMA L-45: 4.705 x 1.100
    • NORMA L-60: 6.265 x 1.100
    • NORMA L-80: 8.345 x 1.100
  • Max. load table kg/m2: 6.000

Traverses of axis

  • Longitudinal mm:
    • NORMA L-45: 4.500
    • NORMA L-60: 6.000
    • NORMA L-80: 8.000
  • Cross mm: 1.250
  • Vertical mm: 1.500

Milling head

  • Spindle nose: ISO-50
  • Programmable speed r.p.m.: 3.000 / 6.000
  • Maximum power kw: 24 / 33
  • Maximum torque Nm: 840 / 960

Feedrates

  • Maximum x-y-z m/min: 20

Weight and dimensions

  • Machine weight:
    • NORMA L-45: 30.000
    • NORMA L-60: 40.000
    • NORMA L-80: 45.000

Accesories

STANDARD

  • Heidenhain CNC
  • Portable handwheel Heidenhain
  • Spindle orientation
  • Rigid tapping
  • Tool Clamping foot pedal
  • Ethernet board
  • 2 Work lights
  • Linear guide ways on the three linear axes
  • A/C electrical cabinet
  • Roofless perimetral guarding
  • External coolant equipment (6 bar | 30l/min | 60 Micron.)
  • Coolant tank 600 l
  • Sliding keypad

OPTIONS

  • 12-30-40-60 post automatic tool changer
  • Rear and frontal chips removal equipment
  • Rear operator’s workplaces
  • Pendulum working
  • Measurement and tool presetting touch probes
  • Coolant through the spindle (high pressure)
  • 4th axis rotary table
  • MQL outer tool microlubrication system
  • 33 kWspindle power
  • Universal Heads:
    • Manual (U22)
    • Auto-indexing Differential (UGA 0,02ºx0,02º)
    • Auto-indexing Differential (UAD 0,02ºx0,02º)
    • UDG
View all technical features
