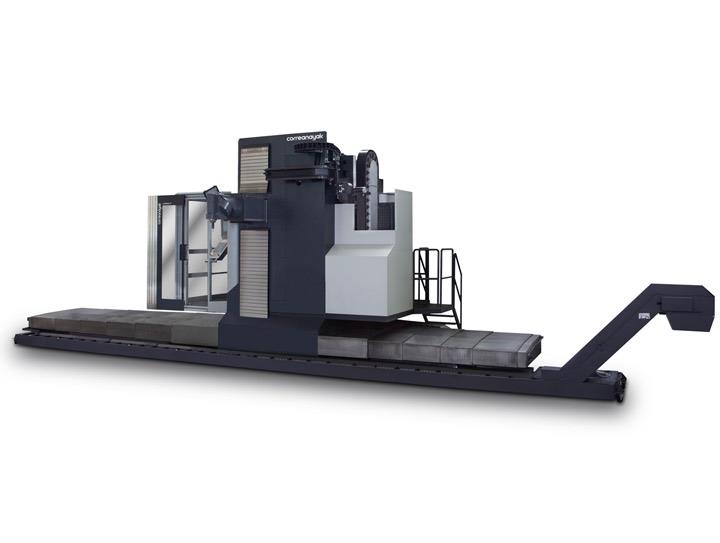

CORREA NORMA Milling machine

Type of machine

  • Type: Milling machine
  • Brand: CORREA
  • Model: NORMA
  • Numerical control:
Download technical data sheet

Technical features

Dimensions

  • Surface mm:
    • NORMA 20: 2.300 x 1.000
    • NORMA 25: 2.800 x 1.000
    • NORMA 35: 3.800 x 1.000
    • NORMA 45: 4.800 x 1.000
  • Max. load table kg:
    • NORMA 20: 4.500
    • NORMA 25: 6.500
    • NORMA 35: 9.000
    • NORMA 45: 10.500

Traverses of axis

  • Longitudinal mm:
    • NORMA 20: 2.000
    • NORMA 25: 2.500
    • NORMA 35: 3.500
    • NORMA 45: 4.500
  • Crossmm: 1.250
  • Vertical mm: 1.500

Milling head

  • Spindle nose: ISO-50
  • Programmable speed r.p.m.: 4.000, 6.000
  • Maximum power kw: 24-33
  • Maximum torque Nm: 840-990

Feedrates

  • Rapid traverses x-y-z m/min: 20

Weight and dimensions

  • Machine weight:
    • NORMA 20: 17.800
    • NORMA 25: 19.000
    • NORMA 35: 21.200
    • NORMA 45: 25.000

Accesories

STANDARD

  • Heidenhain CND system
  • Portable handwheel Heidenhain
  • Spindle orientation
  • Tool Clamping foot pedal
  • Ethernet board
  • Work light
  • Linear ways on the linear axis
  • Hydraulic counterbalance on the vertical axis
  • A/C electrical cabinet
  • Full enclosed guarding
  • Teleservice

OPTIONS

  • 12-30 or 40 post automatic tool changer
  • Chips removal equipment
  • Measurement and tool presetting touch probes
  • Coolant through the spindle (high pressure)
  • 4th axis rotary table
  • MQL outer tool microlubrication system
  • Universal Manual Head (U22)
  • Universal Auto-indexing Differential Head (UGA 0,02ºx2,5º)
  • Universal Auto-indexing Differential Head (UAD 0,02x0,02º)
  • UDG Head
View all technical features
