Milling machine CORREA EURO2000

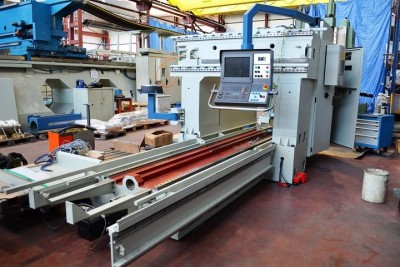

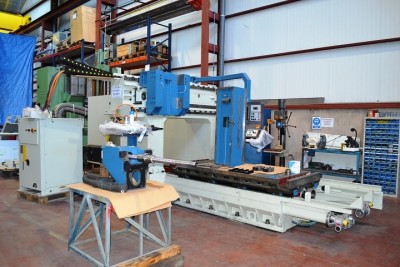

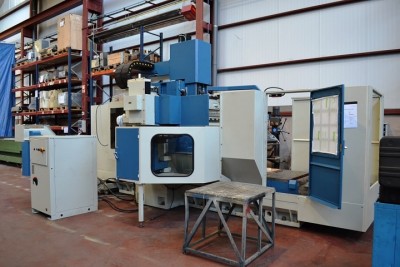

REFURBISHMENT ONGOING

Type of milling machine

  • Type: Bridge type
  • Brand: Correa
  • Model: EURO 2000
  • Year of manufacture: 1999

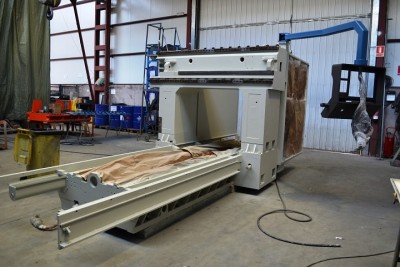

  • Retrofitted: 2021/2022

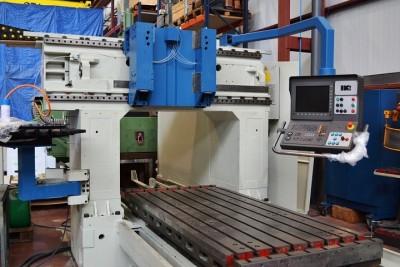

  • Numerical control: HEIDENHAIN TNC-426
Download technical data sheet

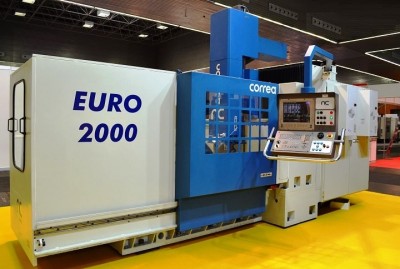

High speed vertical machining centre CORREA EURO2000, with electrospindle up to 10000 r.p.m. With recirculating roller linear bearings on all three axes, full guarding and automatic tool changer.

Refurbished machining centre with guarantees.

Technical features

Dimensions

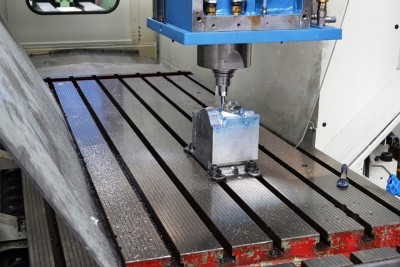

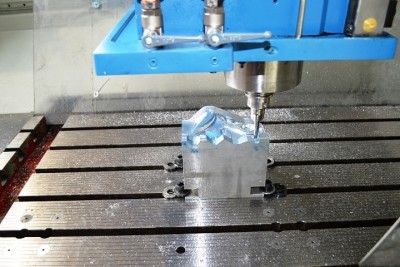

  • Table dimensions: 2000 x 1000 mm
  • Number of T slots: 8
  • T slots dimensions: 22 mm

Traverses of axis

  • X axis traverse: 2000 mm
  • Y axis traverse: 1250 mm
  • Distance between columns: 1250 mm
  • Z axis traverse: 650 mm

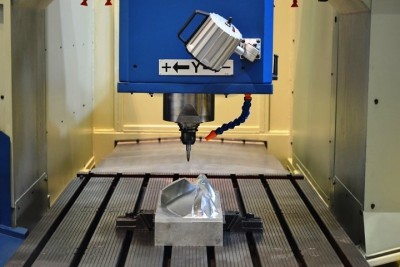

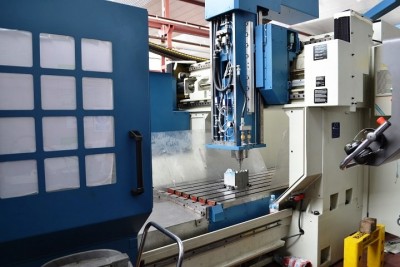

Milling head

  • High speed electrospindle GAMFIOR
  • Tool clamping system: Hydraulic
  • Taper nose: ISO40
  • Speed range: 20 - 10000 rpm
  • Spindle power: 25 kW

Feedrates

  • Feedrate: 10000 mm/min
  • Rapid feedrate (X / Y,Z): 20000 mm/min

Weight and dimensions

  • Maximum weight on table: 5000 Kg
  • Machine weight approximate: 14000 Kg

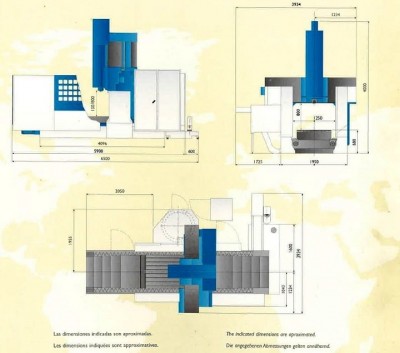

  • Machine dimensions approximate: 6500 x 3934 x 4000 mm

Accesories

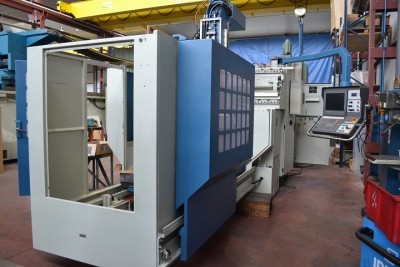

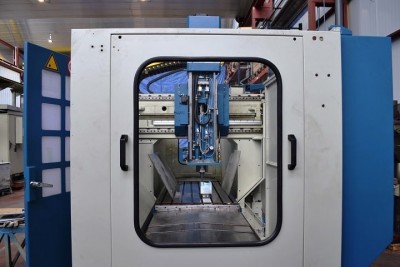

  • Full guarding
  • External and internal coolant through spindle

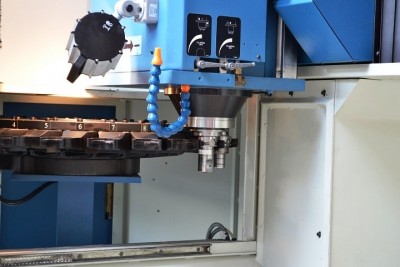

  • Automatic tool changer: ATC24
  • Chip conveyor
  • Electronic handwheel: HR-410

Sales conditions

  • Guarantee: 6 months mechanical spare parts
  • Sale price (Ex Work): On request
View all technical features
