REFURBISHMENT ONGOING

Type of milling machine

  • Type: Bridge type
  • Brand: Correa
  • Model: FP40/60
  • Year of manufacture: 1996
  • Retrofitted: 2025

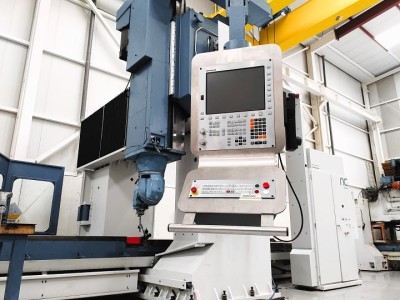

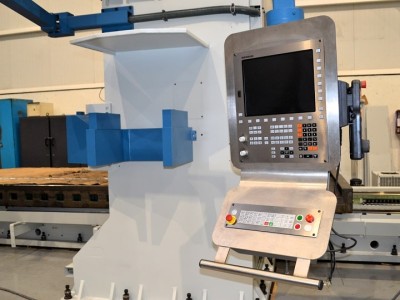

  • Numerical control: NUEVO/NEW HEIDENHAIN TNC-320

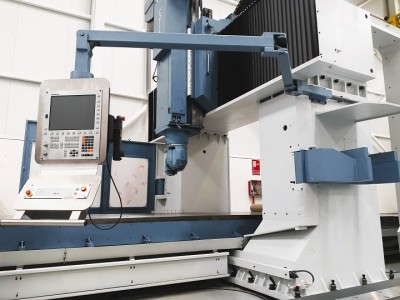

CORREA FP40/60 milling machine under a complete mechanical retrofitting and the installation of a new numerical control HEIDENHAIN TNC-320.

With 6 meters of longitudinal traverse, almost 4 meters in transversal axis and more than 3 meters between columns, also featuring a manual milling head with automatic turning on C body (every 3º) and a direct exit head.

Precise machining with excellent dynamic performance with the guarantee of the retrofitting process of NC Service, part of CORREA GROUP and specialist in CORREA milling machines refurbishment.

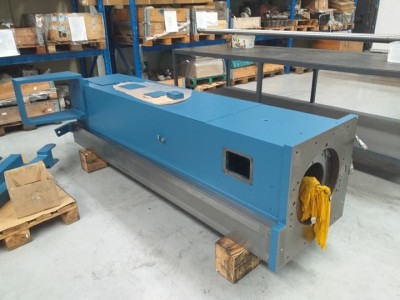

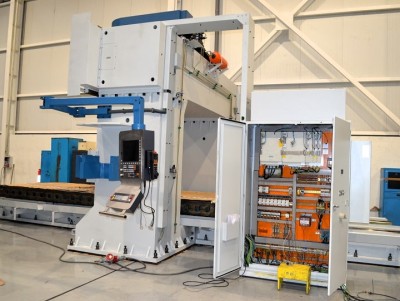

Fully mechanically retrofitted milling machine with installation of a new HEIDENHAIN control unit.

Technical features

Dimensions

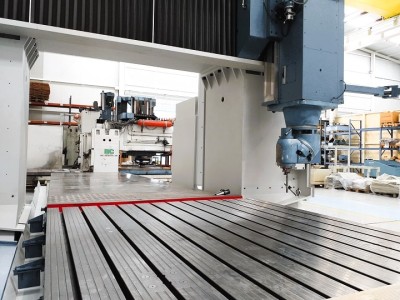

  • Table dimensions: 6000 x 2000 mm
  • Number of T slots: 13
  • T slots dimensions: 22 mm

Traverses of axis

  • X axis traverse: 6000 mm
  • Y axis traverse: 3800 mm
  • Z axis traverse: 1000 mm
  • Vertical capacity (VC): 500 / 1500 mm (direct exit)

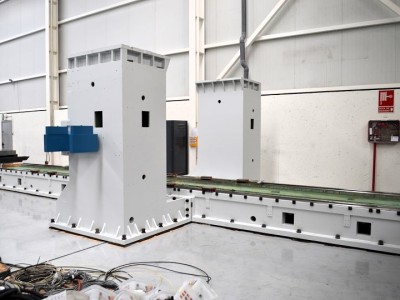

  • Distance between columns: 3100 mm

Milling head

  • Universal head UM40 (Body B: manual / Body C: 3º auto-indexing) & Direct spindle
  • Tool clamping system: Hydraulic
  • Taper nose: ISO50 (DIN-69871)  /  Pull stud: DIN-96872
  • Speed range: 3000 rpm
  • Spindle power: 30 kW

Feedrates

  • Rapid feedrate (X / Y,Z): 7200 / 12000 mm/min

Weight and dimensions

  • Machine weight approximate: 50000 Kg
  • Maximum weight on table: 15000 kg
  • Machine dimensions approximate: 14740 x 5330 x 5050 mm

Accesories

  • Guarding: 2 sliding doors with a new perimetral wire-mesh safety fence
  • Head changer: automatic with lateral hinge/support in column
  • Chip conveyor: 2 longitudinal pallets
  • Electronic handwheel: New HR-510
  • Coolant: External & Internal high pressure through spindle (internal only with direct exit head)

Sales conditions

  • Guarantee: 6 months mechanical spare parts
  • Sale conditions and price: On request
View all technical features
